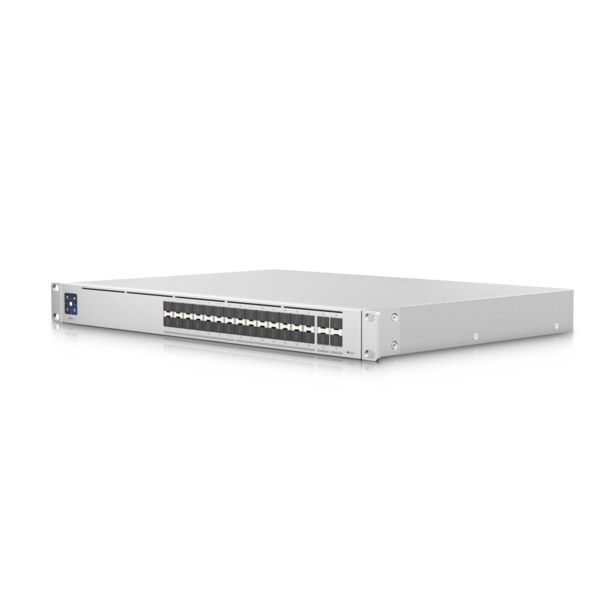

Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports
£615.96 Ex VAT
In stock
Ubiquiti Networks UniFi Switch Pro Aggregation. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: None. Switching capacity: 760 Gbit/s. DC input voltage: 11.5 V. Power connector: DC-in jack
Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.
| Weight | 4.6 kg |
|---|---|
| Input current | 2 A |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Product colour | Grey |
| Switching capacity | 760 Gbit/s |
| LED indicators | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Housing material | Steel |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Depth | 325 mm |
| Height | 44 mm |
| Width | 442 mm |
| Throughput | 380 Mpps |
| Power consumption (max) | 100 W |
| Power supply included | Yes |
| SFP+ module slots quantity | 28 |
| DC input voltage | 11.5 V |
| Static route | Yes |
| Power connector | DC-in jack |
| Forwarding rate | 565.44 Mpps |
| Number of fans | 4 fan(s) |
| DHCP features | DHCP server |
| Harmonized System (HS) code | 85176990 |
| SFP28 ports quantity | 4 |
