AMD Ryzen V1500B, 4 GB DDR4, 12x 2.5/3.5″, RJ-45, USB 3.2, PCIe, 2U, 88x482x552 mm
Synology RackStation RS2421+. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5″. Processor family: AMD Ryzen, Processor manufacturer: AMD, Processor model: V1500B. Internal memory: 4 GB, Internal memory type: DDR4, Maximum RAM supported: 32 GB. LAN data rates: , Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. Chassis type: Rack (2U), Cooling type: Active, Product colour:
Secure storage for your business

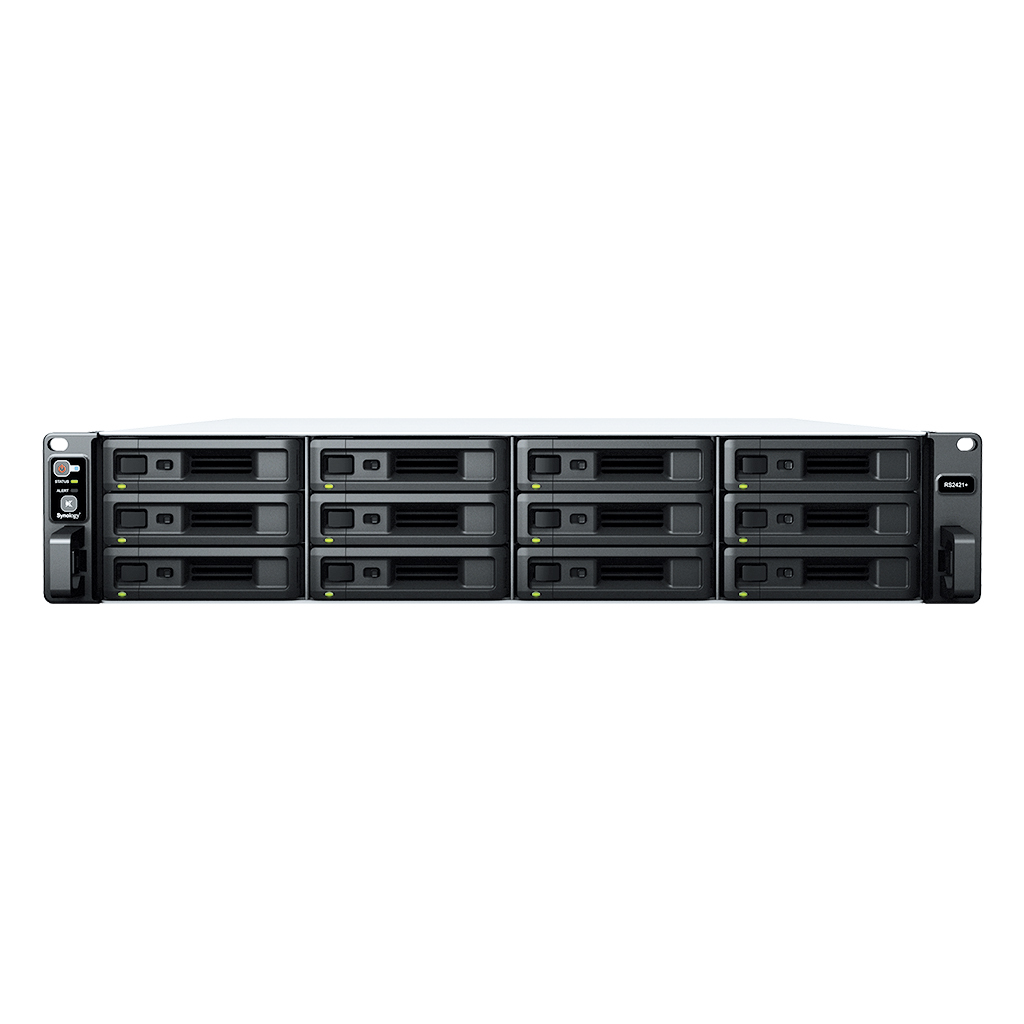

Synology RS2421+/RS2421RP+ are versatile 2U 12-bay storage servers designed to accommodate a diverse set of business environments. Scalable up to 24 drives, they are designed for cost-effective file management and sharing and include powerful backup capabilities designed for businesses with a growing data footprint. The unit delivers 2,200 MB/s 64K sequential read and 1154 MB/s sequential write performance, and can be optionally enhanced with SSD cache and 10/25Gb .
High performance storage for anything
Over 106K/59K random read/write IOPS and up to 2,200/1,154 MB/s sequential read/write throughput ensure ample performance for demanding workloads.
Built for reliability
Redundant power
Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Near-zero downtime
Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails.
Data integrity and protection
ECC memory brings higher system reliability, while the Btrfs file system helps prevent data corruption, supports snapshot technology, and simplifies data protection.
Customize to suit
Easily adapt the RS2421+/RS2421RP+ to any business environment by adding er networking, local SSD cache, or storage capacity.
10/25GbE ready
Support for 10/25GbE NICs lets you boost maximum network throughput using Link Aggregation (bonding).
Hyper Backup
Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication5, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.
Serving remote workforces
Keep your remote workforce connected with powerful out-of-the-box solutions for collaboration, file sharing, and communication.
Storage for virtualization
DSM streamlines provisioning for and management of virtual machines with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization environments.
Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
| Processor model | V1500B |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Flash memory | 4000 MB |
| Cables included | AC |
| Weight | 11.5 kg |
| Power consumption (typical) | 79.56 W |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Access Control List (ACL) | Yes |
| Operating system installed | DiskStation Manager |
| Web-based management | Yes |
| Number of fans | 3 fan(s) |
| Reset button | Yes |
| Noise level | 50.1 dB |
| Number of power supply units | 1 |
| Wake-on-LAN ready | Yes |
| Product colour | Black |
| Processor cores | 4 |
| Memory slots | 2 |
| Depth | 552 mm |
| Height | 88 mm |
| Width | 482 mm |
| Ethernet LAN data rates | 1000 Mbit/s |
| Processor frequency | 2.2 GHz |
| RAID support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| On/off switch | Yes |
| Backup function | Yes |
| Device class | Large Enterprise Business |
| Backup features | Cloud |
| Maximum RAM supported | 32 GB |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Maximum supported storage capacity | 108 TB |
| Hot-swap drive bays | Yes |
| Cooling type | Active |
| Fan diameter | 6 cm |
| Link aggregation | Yes |
| System log | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Snapshot | Yes |
| Internal memory type | DDR4 |
| Memory form factor | UDIMM |
| Processor manufacturer | AMD |
| Number of processors supported | 1 |
| Sustainability certificates | RoHS |
| Power cables quantity | 2 |
| Harmonized System (HS) code | 84714100 |
