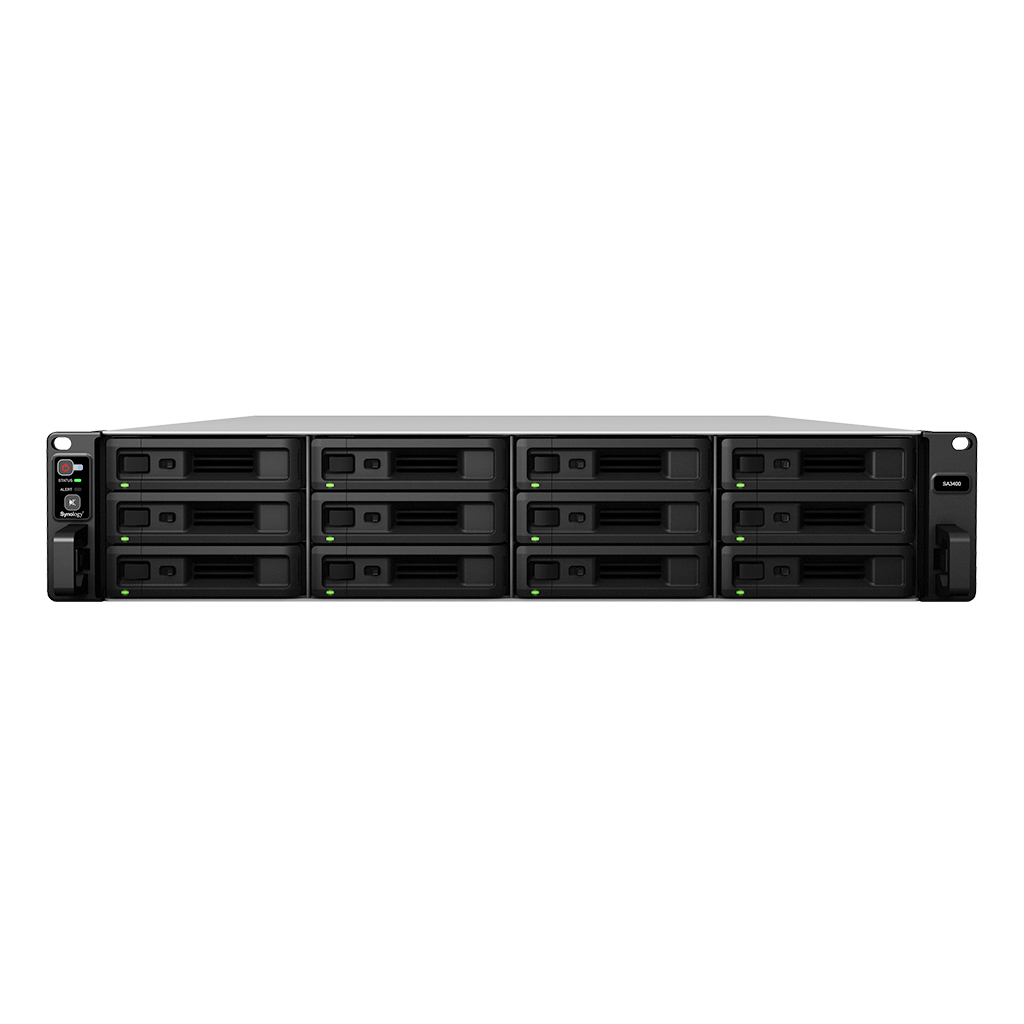

SA3400, Intel Xeon D-1541, 16 GB DDR4, 12x 2.5/3.5″ SAS/SATA, 4x 1G RJ-45, 2x 10G RJ-45, 2x USB 3.0, 88x482x724 mm
Synology SA3400. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA, Serial Attached SCSI (SAS), Storage drive sizes supported: 2.5,3.5″. Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-1541. Internal memory: 16 GB, Internal memory type: DDR4, Maximum RAM supported: 128 GB. LAN data rates: 10,100,1000,10000 Mbit/s, LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, TP). Chassis type: Rack (2U), Cooling type: Active, Product colour:
Highly scalable storage with uncompromising performance
Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS. Built-in 10GbE , PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with data transmission, fulfilling modern enterprises’ needs for excellent performance and massive storage scalability simultaneously.
Small-to-hyperscale flexibility
Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.
Supercharge network performance effortlessly
Built-in dual 10GbE ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards’ expansion.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
– Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
– Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
– File or folder level data restoration makes data recovery and flexible
– Automatic file self-healing detects and recovers corrupted files without user intervention
Ultimate Backup Solution
SA3400 integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
| Weight | 3 kg |
|---|---|
| Multilingual support | Yes |
| Processor model | D-1541 |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Cables included | AC |
| Weight | 14.5 kg |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 137.17 W |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Supported network protocols | CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Wi-Fi | No |
| iSCSI support | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Certification | EAC |
| LED indicators | HDD, Power |
| Operating system installed | DiskStation Manager |
| Web-based management | Yes |
| Number of fans | 4 fan(s) |
| Reset button | Yes |
| Noise level | 49.8 dB |
| Wake-on-LAN ready | Yes |
| Product colour | Black |
| Processor cores | 8 |
| Memory slots | 4 |
| Depth | 724 mm |
| Height | 88 mm |
| Width | 482 mm |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Processor frequency | 2.1 GHz |
| RAID support | Yes |
| Windows operating systems supported | Windows 10, Windows 7 |
| Server operating systems supported | Windows Server 2016 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| On/off switch | Yes |
| Backup function | Yes |
| Device class | Large Enterprise Business |
| Backup features | Cloud, iSCSI LUN |
| Maximum RAM supported | 128 GB |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Maximum supported storage capacity | 192 TB |
| Hot-swap drive bays | Yes |
| Quick installation guide | Yes |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Link aggregation | Yes |
| Browser supported | Chrome, Firefox, Edge, Internet Explorer 10+, Safari 10+ |
| System log | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| CPU configuration (max) | 1 |
| Stepping | V2 |
| Processor package size | 37.5 x 37.5 mm |
| Processor cache | 12 MB |
| PCI Express slots version | 2.0, 3.0 |
| Processor socket | BGA 1667 |
| Processor codename | Broadwell |
| Processor boost frequency | 2.7 GHz |
| PCI Express configurations | 1×16, 1×4, 1×8 |
| Thermal Design Power (TDP) |
