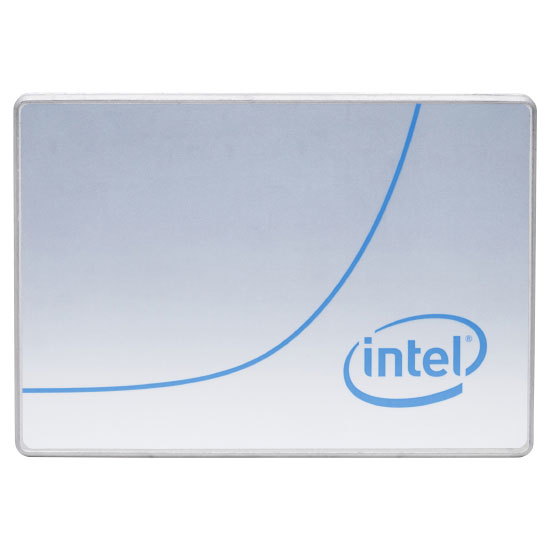

Intel® SSD DC P4510 Series (4.0TB, 2.5in PCIe 3.1 x4, 3D2, TLC)
Intel DC ® SSD P4510 Series (4.0TB, 2.5in PCIe 3.1 x4, 3D2, TLC). SSD capacity: 4000 GB, SSD form factor: U.2, Read speed: 3000 MB/s, Write speed: 2900 MB/s, Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Intel® Smart Response Technology
Intel® Smart Response Technology combines the performance of a small SSD with the large capacity of a hard disk drive.
Intel® Remote Secure Erase
Intel® Remote Secure Erase provides IT administrators a secure method for remotely wiping an Intel SSD from a familiar management console when retiring or repurposing a system. This allows for immediate re-use while saving administrative time and costs.
| Weight | 170 kg |
|---|---|
| Product Condition | New Retail |
| Height | 15 mm |
| Weight | 139 g |
| Power consumption (read) | 14 W |
| Power consumption (write) | 14 W |
| Operating shock | 1000 G |
| Operating temperature (T-T) | 0 – 70 °C |
| Write speed | 2900 MB/s |
| Read speed | 3000 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Security algorithms | 256-bit AES |
| Random write (4KB) | 111500 IOPS |
| Random read (4KB) | 636500 IOPS |
| Internal memory type | PCIe 3.1 x4, NVMe |
| Power consumption (idle) | 5 W |
| Write latency | 18 µs |
| Random read (100% span) | 636500 IOPS |
| Random write (100% span) | 111500 IOPS |
| Read latency | 77 µs |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Power consumption (active) | 14 W |
| PCI Express interface data lanes | x4 |
| End-to-End Data Protection | Yes |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 3000 MB/s |
| Status | Launched |
| Sequential writing speed | 2900 MB/s |
| SSD endurance rating | 6.3 PBW |
| Launch date | Q1'18 |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Processor family | Intel SSD DC P4510 |
| Product series | Intel® SSD DC P4510 Series |
| Product codename | Cliffdale Refresh |
| NVMe version | 1.2 |
| Intel® Remote Secure Erase | No |
| Harmonized System (HS) code | 84717070 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Maximum operating temperature | 70 °C |
| HP segment | Enterprise |
| Random latency - read (up to) | 95 µs |
| Random latency - write (up to) | 25 µs |
