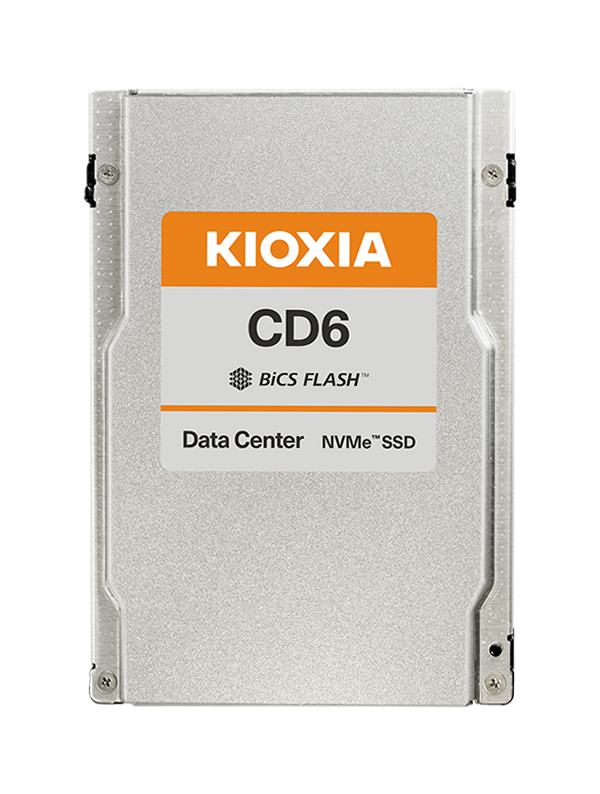

CD6-V 1600GB, 2.5″, PCIe Gen4 x4, NVMe 1.4, BiCS FLASH 3D TLC
Kioxia CD6-V. SSD capacity: 1600 GB, SSD form factor: 2.5″, Read speed: 5800 MB/s, Write speed: 1150 MB/s, Data transfer rate: 64 Gbit/s, Component for: Server/workstation
The CD6-V Series is a mixed-use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® Gen4 x4 interface, the CD6-V Series SSDs deliver consistent performance up to 1M IOPS (random read) and 250 KIOPS (random write), with active power consumption of 13-19 W.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASHTM 3D TLC memory, CD6-V SSDs deliver 3DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
| Data transfer rate | 64 Gbit/s |
|---|---|
| Height | 15 mm |
| Depth | 100.5 mm |
| Weight | 130 g |
| Width | 69.8 mm |
| Operating voltage | 12 V |
| Operating shock | 1000 G |
| Operating temperature (T-T) | 0 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Write speed | 1150 MB/s |
| Read speed | 5800 MB/s |
| Mean time between failures (MTBF) | 2500000 h |
| Operating vibration | 2.17 G |
| Random write (4KB) | 85000 IOPS |
| Random read (4KB) | 700000 IOPS |
| PCI Express interface data lanes | x4 |
| NVMe version | 1.4 |
| Harmonized System (HS) code | 84717070 |
