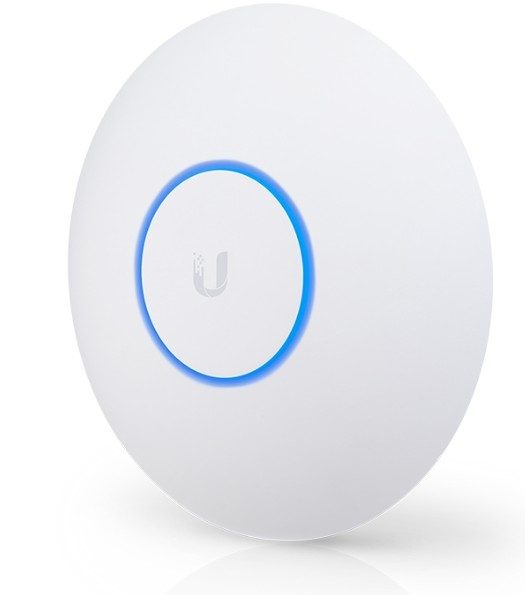

UAP-AC-SHD – 802.11ac Wave 2 Access Point w/ Dedicated Security Radio, 5-pack
Ubiquiti Networks UAP-AC-SHD-5. Maximum data transfer rate: 1000 Mbit/s, Wi-Fi data rate (max): 1733 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WEP, WPA-Enterprise, WPA-PSK. Power consumption (max): 20 W. Product colour: White, Certification: CE, FCC, IC. Antenna gain level (max): 6 dBi
Scalable Enterprise Wi-Fi Management
The UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.
The built-in, dedicated security and monitoring radios of the UniFi AC SHD (Secure High Density) AP provides visibility into site performance, channel planning, and
local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
| Weight | 10000 kg |
|---|---|
| pa_i_ethernetlanrj4_2312_1 | 2 |
| Weight | 700 g |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -40 – 60 °C |
| Internal | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | WEP, WPA-Enterprise, WPA-PSK |
| Certification | CE, FCC, IC |
| Antenna gain level (max) | 6 dBi |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Height | 220 mm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Antennas quantity | 2 |
| Depth | 48.1 mm |
| Width | 220 mm |
| Reset button | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Product colour | White |
| Power consumption (max) | 20 W |
| Harmonized System (HS) code | 85176990 |
