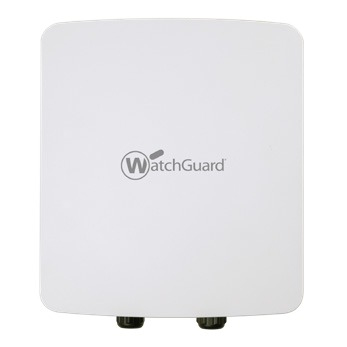

AP430CR
WatchGuard AP430CR. Maximum data transfer rate: 5000 Mbit/s, Ethernet LAN data rates: 1000,2500,5000 Mbit/s, Networking standards: IEEE 802.11ax, IEEE 802.3at. Security algorithms: WPA3. Power consumption (typical): 16 W, Power consumption (max): 19 W. Product colour: White, International Protection (IP) code: IP67. Antenna type: External, Antenna connector type: N-type
Rugged Wi-Fi That Unlocks the Outdoors
Wi-Fi 6 and WPA3 encryption delivers optimized connectivity with the AP430CR. We enhance wireless experiences across rugged, high-density environments with deep integration into our portfolio of security solutions. Explore simplified end-to-end management in WatchGuard Cloud that unlocks endless possibilities across captive portals, device health, remote VPN, user management, and more.
Powerful Wireless Experience
WatchGuard’s Wi-Fi 6 access points include a complete and powerful wireless feature set delivered by a zero-touch deployment experience. Utilizing secure WPA3 encryption, the AP430CR is perfect for high-density indoor and outdoor environments that include manufacturing warehouses, industrial freezers, expansive corporate or education campuses, and everything in between that deserve reliable performance and dedicated security. Lightning-fast connectivity with integrated security, centralized management, intelligent reporting, and deep visibility into wireless ecosystems to stay focused on what matters.
End-to-End Management Features
Ensure a comprehensive view of crucial reporting such as signal strength, bandwidth consumption, and distribution. Captive portals deliver excellent end-user experiences while keeping them secure. Manage multi-tier and multi-tenant ecosystems by reducing the complexity of managing multiple services. Efficiently deploy, configure, and report Wi-Fi connectivity for every user with deep cross-platform integration to WatchGuard’s portfolio of products.
Flexible Management of Wi-Fi in WatchGuard Cloud
A standard license for Wi-Fi in WatchGuard Cloud offers basic Cloud management features that include 24-hour reporting, comprehensive 24/7 support, diagnostics, inventory management, and beyond. WatchGuard Unified Security Platform Management™ licenses for Wi-Fi in WatchGuard Cloud offer everything included in the Standard license plus 30 days of reporting, VPN configuration, advanced PSA integration, and much more.
Add Wi-Fi 6 to Every Space
Wi-Fi is essential to stay connected, work, play, and manage IoT devices. WatchGuard’s Wi-Fi 6 access points deliver exceptional performance with an easy way to benefit from the security across many use cases such as remote work, retail experiences, and expansive campuses. WatchGuard’s AP430CR is perfect for high-density deployments and is ideal for indoor or rugged outdoor deployment with superior Wi-Fi 6 performance and security.
Get Hands-on with a Free Demo
Our secure Wi-Fi 6 access points are managed in WatchGuard Cloud. Get hands-on access to the ease of manageability, ability to identify network status, and so much more with a free demo.
| Weight | 3 kg |
|---|---|
| Receiver sensitivity | -93 dBm |
| pa_i_ethernetlanrj4_2312_1 | 2 |
| Weight | 1.76 kg |
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Security algorithms | WPA3 |
| Modulation | DSSS, OFDM |
| Antenna type | External |
| Antenna connector type | N-type |
| Web-based management | Yes |
| Height | 53.7 mm |
| Networking standards | IEEE 802.11ax, IEEE 802.3at |
| Depth | 217.7 mm |
| Width | 267.1 mm |
| Transmitting power | 24 dBmW |
| Product colour | White |
| Power consumption (max) | 19 W |
| International Protection (IP) code | IP67 |
| Number of connectors | 6 |
| Number of products included | 1 pc(s) |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
