High Availability, 20 Gbps Throughput, 32 GB RAM, VPN Throughput 11.5 Gbps, 8 x 1GbE SFP, 4 x 10GbE SFP+, 2 x USB, LCD, SonicOS

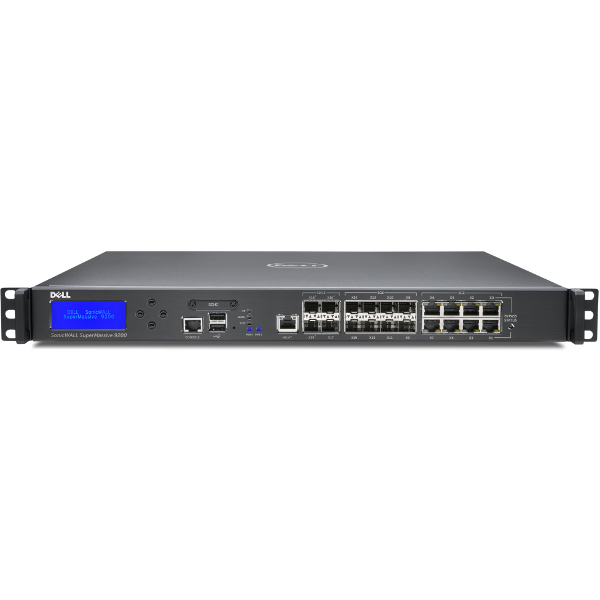

SonicWall SuperMassive 9600. Firewall throughput: 20000 Mbit/s, Maximum data transfer rate: 10000 Mbit/s, VPN throughput: 11500 Mbit/s. Certification: FCC Class A, CE, C-Tick, VCCI, Compliance KCC, UL, cUL, TUV/GS, CB, NOM, RoHS, WEEE , ANATEL, BSMI. Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, DES, MD5, SHA-1, VPN support: IPSec SSL. Management protocols: SNMPv2/v3, Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, Routing protocols: BGP, OSPF, RIP-1, RIP-2. Connectivity technology: Wired
The Dell SonicWALLTM SuperMassive Series is Dell’s Next-Generation Firewall (NGFW) platform designed for large networks to deliver scalability, reliability and deep security at multi-gigabit speeds
with near zero latency.
Built to meet the needs of enterprise, government, university, and service provider deployments, the SuperMassive Series is ideal for securing enterprise networks, data centers and service
providers.
Combining its massively multi-core architecture and Dell SonicWALL’s patented Reassembly-Free Deep Packet Inspection (RFDPI) technology, the SuperMassive E10000 and 9000 Series deliver industry-leading application control, intrusion prevention, malware protection and SSL inspection at multi-
gigabit speeds. The SuperMassive Series is designed with power, space, and cooling (PSC) in mind, providing the leading Gbps/Watt NGFW in the industry for application control and threat prevention.
The Dell SonicWALL RFDPI engine scans every byte of every packet across all ports, delivering full content inspection of the entire stream while providing high performance and low latency. This
technology is superior to outdated proxy designs that reassemble content using sockets bolted to anti-malware programs that are plagued with inefficiencies and overhead of socket memory thrashing
that leads to high latency, low performance and file size limitations. The RFDPI engine delivers full content inspection to eliminate threats before they enter the network and provides protection against
millions of unique malware variants without file size, performance or latency limitations. The RFDPI engine also provides full inspection of SSL-encrypted traffic as well as non-proxyable applications enabling complete protection regardless of transport or protocol.
| pa_built-in-camera | Yes |
|---|---|
| Internal memory | 32000 MB |
| Compatible operating systems | SonicOS |
| pa_i_ethernetlanrj4_2312_1 | 8 |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 433 x 485 x 45 mm |
| Weight | 8.2 kg |
| Power supply | 300 W |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Routing protocols | BGP, OSPF, RIP-1, RIP-2 |
| Management protocols | SNMPv2/v3 |
| Number of VLANs | 512 |
| Form factor | 1U |
| Number of VPN connections | 10000 |
| VPN tunnels quantity | 10000 |
| Firewall throughput | 20000 Mbit/s |
| VPN throughput | 11500 Mbit/s |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, 3DES, 802.1x RADIUS, DES, MD5, SHA-1 |
| VPN support | IPSec |
| Certification | FCC Class A, CE, C-Tick, VCCI, Compliance KCC, UL, cUL, TUV/GS, CB, NOM, RoHS, WEEE , ANATEL, BSMI |
| LED indicators | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Wi-Fi | No |
| IPS/IDS throughput | 9700 Mbit/s |
| Built-in display | Yes |
| Display | LED |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Maximum firewall connections | 1500000 |
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum firewall connections per second | 130000 |
| Processor cores | 32 |
