5 x 10/100/1000 RJ-45, 1 serial, 2 x USB, 203 Mbits UTM, 50 VLANs, 100-240 VAC, NFR Appliance
WatchGuard Firebox T35-R. Firewall throughput: 480 Mbit/s, Firewall (UDP 1518) throughput: 0.94 Gbit/s, VPN (IMIX) throughput: 96 Mbit/s. Mean time between failures (MTBF): 83182 h, Certification: CC EAL4+, FIPS 140-2, NRTL/CB, IPv6 Ready Gold (routing), WEEE, RoHS, REACH. Networking standards: IEEE 802.3ad. Firewall security: Stateful packet inspection, TLS decryption, proxy firewall, Content filtering: Browser Safe Search, Google for Business. Supported network protocols: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS and Explicit Prox, Routing protocols: BGP,OSPF,RIP
Ruggedized Security for Harsh Environments

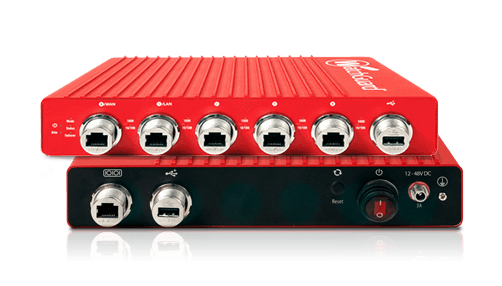

Firebox T35-R is a high-performance ruggedized compact security appliance built to withstand extreme temperatures, moisture and dust.
Traditional firewalls are designed for office environments or rack-mounted in a climate-controlled server room, where issues with temperature, water and dust are negligible. Initiatives to connect and modernize operations in harsh environments require a device that can withstand these conditions, ensure effective security, and deliver consistently high performance.
Built to Withstand Harsh Conditions
Dust, moisture, and extreme temperatures can dramatically reduce the lifecycle and performance of network hardware. WatchGuard’s Firebox T35-R features an IP64-rated industrial enclosure that is both dust and splash proof, and capable of operating in temperatures of -40 to +60 deg C (-40° to +140° F). The ruggedized construction of the Firebox T35-R means you can deploy the appliance in harsh environments without needing additional protections. Want to use a T35-R in an industrial enclosure? T35-R includes standard DNI rails and supports both DC and AC power for easy integration.
Goodbye RADIUS Set-Up, Hello AuthPoint MFA
With RADIUS set-up no longer required, it is now easier to set up strong multi-factor authentication for VPNs through the Firebox. Security and convenience make this integration a powerful tool for zero-trust implementations.
Zero-Touch Remote Deployment
With the T35-R you can avoid sending your team to every location a device is needed. Our Cloud-based RapidDeploy technology allows you to create and store Firebox configuration data in the Cloud and have an appliance directly shipped to its destination. Once the device arrives, a user only needs to plug it in – RapidDeploy will automatically download and apply your pre-determined configuration.
Easy to Manage and Understand
The Firebox T35-R is not only easy to initially configure and deploy, it is designed with an emphasis on centralized management, making ongoing policy and network management across your distributed environment simple and straightforward. WatchGuard Cloud provides a suite of big data visibility and reporting tools that instantly identify and distill key network security threats, issues and trends so you can take immediate preventive or corrective action. Security is complex, running it doesn’t have to be.
Layered Security for Industrial Use Cases
While connecting remote locations and industrial environments can help you achieve a higher level of operational efficiency, the security implications of doing so can be severe. Breaches of industrial control systems (ICS) can have significant impact, bringing your business to a halt and even potentially endangering lives. Our Firebox T35-R includes specific SCADA IPS signatures to protect against well-known exploits of common industrial control systems (ICS), making it an ideal choice for remote locations with ICS security needs.
IP64-rated industrial enclosure is dust and splash proof, and capable of operating in temperatures of -40 to +60 deg C (-40° to +140° F)
All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA
Easy integration into industrial enclosures with DNI rail included, and DC or AC power cords available
SCADA IPS signatures to protect against well-known exploits of common industrial control systems
Full specifications for this model are listed below.
| Concurrent connections | 1300000 |
|---|---|
| Serial ports quantity | 1 |
| Connectivity technology | Wired |
| Peak power | 15 W |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 10 – 85% |
| Operating temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -40 – 70 °C |
| Non-operating altitude | 0 – 4570 m |
| Mean time between failures (MTBF) | 83182 h |
| Supported network protocols | HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS and Explicit Prox |
| Routing protocols | BGP,OSPF,RIP |
| Number of VLANs | 50 |
| Firewall throughput | 480 Mbit/s |
| Branch Office VPN | 25 |
| Mobile VPN IPSec | 25 |
| Firewall security | Stateful packet inspection, TLS decryption, proxy firewall |
| Content filtering | Browser Safe Search, Google for Business |
| Certification | CC EAL4+, FIPS 140-2, NRTL/CB, IPv6 Ready Gold (routing), WEEE, RoHS, REACH |
| LED indicators | Yes |
| Remote administration | IKEv2, IPSec, L2TP, TLS |
| USB 2.0 ports quantity | 2 |
| WAN connection | Ethernet (RJ-45) |
| DHCP server | Yes |
| DHCP client | Yes |
| Networking standards | IEEE 802.3ad |
| AC input voltage | 100-240 V |
| Maximum firewall connections per second | 6800 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Package width | 299 mm |
| Package depth | 95 mm |
| Package height | 250 mm |
| Package weight | 2.25 kg |
| VPN (IMIX) throughput | 96 Mbit/s |
| VPN (UDP 1518) throughput | 0.56 Gbit/s |
| Firewall (UDP 1518) throughput | 0.94 Gbit/s |
| Gateway antivirus throughput | 0.325 Gbit/s |
| TDR host sensors capacity | 20 |
| Width | 240.6 mm |
| Depth | 66 mm |
| Height | 43.3 mm |
| DC input voltage | 12 V |
