50 User, 8 x Gigabit Ethernet, PoE+, NXP LS1046A 1.2GHz, 4 GB DDR4, 128 GB SSD, 2 x USB, High Availability with 3 years Standard Support (UK)

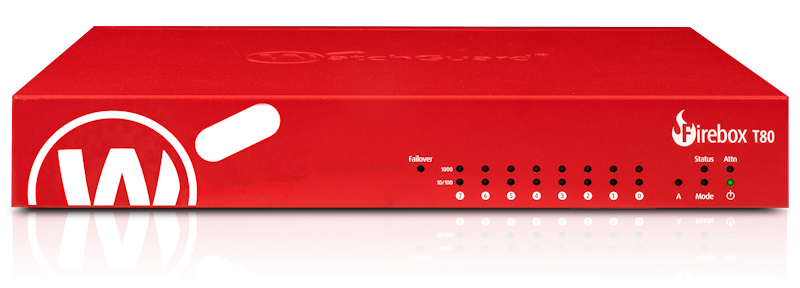

WatchGuard Firebox T80. Firewall throughput: 631 Mbit/s, Firewall (UDP 1518) throughput: 4.7 Gbit/s, Firewall (IMIX) throughput: 1.32 Gbit/s. Processor manufacturer: NXP, Processor model: LS1026A, Processor architecture: ARM Cortex-A72. Networking standards: IEEE 802.1Q, IEEE 802.3ad, Number of users: 50 user(s). Security algorithms: FIPS 140-2. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s
High-performance security that evolves with your network
A customizable, high-performance tabletop firewall with optional port expansion modules to adapt to your changing needs.
Businesses today are dependent on fast, reliable and secure Internet connectivity, but struggle to find network security solutions that can keep up, let alone evolve as their needs change. Firebox T80 is one of the highest performing tabletop appliances on the market and offers optional port expansion modules for integrated fiber connectivity, so you can adapt as your connectivity needs change.
Total Security, Wherever You Need It
The Firebox T80 gives you a powerful tool for administering and enforcing policy across your extended network, allowing you to bring full UTM protection to small and midsize environments for tighter security. With full support for the Total Security Suite, WatchGuard’s T80 makes it possible to protect your smaller locations with advanced security services like Cloud sandboxing, AI-powered anti-malware, threat correlation and DNS-filtering.
Zero-Touch Remote Deployment
With the Firebox T80 you can avoid sending your team to every location a device is needed. Our Cloud-based RapidDeploy technology allows you to create and store Firebox configuration data in the Cloud and have an appliance directly shipped to its destination. Once the device arrives, a user only needs to plug it in – RapidDeploy will automatically download and apply your pre-determined configuration. Perfect for users at home!
Integrated Power over Ethernet (PoE+)
Firebox T80 appliances include a special Power over Ethernet (PoE+) port to power a peripheral device such as a Cloud-managed wireless access point from WatchGuard or a third-party security camera, allowing you to extend the reach of your networks without having to run costly AC power to remote devices.
Secure SD-WAN That’s Easy
Businesses today require network solutions that can adapt to changing conditions to optimize network performance and reduce costs as needs change. With SD-WAN built-in, our Firebox T80 makes it easy to reduce the use of expensive MPLS or 4G/LTE and improve network resiliency, while maintaining security.
Customize Your Firebox with Optional Port Expansion Modules
The Firebox T80 features a port expansion bay, giving you the option to customize your port configuration with expansion modules for integrated fiber connectivity right from the appliance. Optional 1Gb SFP or 10 Gb SFP+ expansion modules are available.
Don’t Hesitate, Automate
As a highly automated platform, the Firebox T80 is perfect for time-strapped IT teams. WatchGuard’s unique Automation Core ensures secure user access to essential resources, blocks advanced threats from entering your network, keeps endpoints free of malware, and optimizes network performance, while requiring minimal interaction from your IT team.
| Weight | 3100 kg |
|---|---|
| Concurrent connections | 500000 |
| Processor frequency | 1200 MHz |
| Internal memory | 4 MB |
| pa_i_ethernetlanrj4_2312_1 | 8 |
| Serial ports quantity | 1 |
| Connectivity technology | Wired |
| Weight | 2.6 kg |
| Power consumption (typical) | 27 W |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 10 – 85% |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -40 – 70 °C |
| Non-operating altitude | 0 – 4570 m |
| Mean time between failures (MTBF) | 1155348 h |
| Number of VLANs | 75 |
| Number of users | 50 user(s) |
| VPN tunnels quantity | 60 |
| Firewall throughput | 631 Mbit/s |
| Branch Office VPN | 60 |
| Security algorithms | FIPS 140-2 |
| Certification | CC, FIPS 140-2, NRTL/CB, IPv6 Ready Gold, WEEE, RoHS, REACH |
| LED indicators | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Quality of Service (QoS) support | Yes |
| Internal memory type | DDR4 |
| Built-in processor | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| IPS/IDS throughput | 909 Mbit/s |
| Storage media type | SSD |
| SSD capacity | 128 GB |
| AC input frequency | 47/63 Hz |
| AC input voltage | 90-264 V |
| Input current | 2.22 A |
| Maximum firewall connections per second | 25000 |
| pa_built-in-camera | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| On/off switch | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Reset button | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power consumption (max) | 96 W |
| Package width | 309.2 mm |
| Package depth | 103.7 mm |
| Package height | 380 mm |
| Package weight | 3.1 kg |
| Processor model | LS1026A |
| Processor architecture | ARM Cortex-A72 |
| Dynamic routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile VPN tunnels quantity | 60 |
| HTTPS encryption | Yes |
| VPN (IMIX) throughput | 416 Mbit/s |
| VPN (UDP 1518) throughput | 1.4 Gbit/s |
| Firewall (UDP 1518) throughput | 4.7 Gbit/s |
| Firewall (IMIX) throughput | 1.32 Gbit/s |
| Gateway antivirus throughput | 1.15 Gbit/s |
| Current connections (proxy) | 200000 |
| Width | 290 mm |
| Depth | 205.5 mm |
| Height | 43 mm |
| Processor manufacturer | NXP |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
