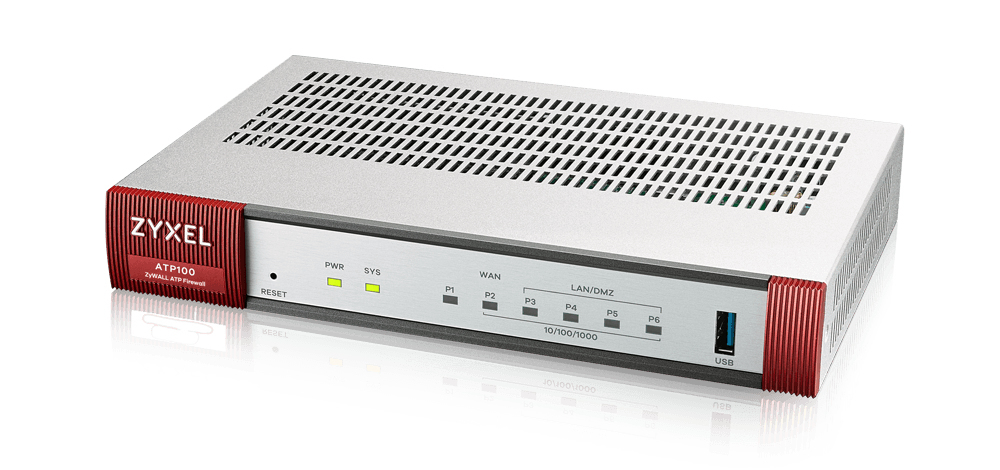

ATP100 4 x LAN/DMZ, 1 x WAN, 1 x SFP, USB 3.0
Zyxel ATP100. Firewall throughput: , Maximum data transfer rate: , VPN throughput: 300 Mbit/s. Heat dissipation: 42.65 BTU/h, Concurrent users: 10 user(s), Mean time between failures (MTBF): 989810.8 h. Security algorithms: IPSec, SSL/TLS, VPN support: IKEv2, IPSec, SSL, TP/IPSec. Connectivity technology: Wired, LAN data rates: 10,100,, Console port: RJ-45. Input current: 2 A, Power consumption (typical): 12.5 W, Power consumption (max): 12.5 W
Next-Gen Firewall for SMBs
The Zyxel ZyWALL ATP100/200/500/800 is an Advanced Threat Protection Firewall Series dedicated for small and medium businesses, empowered by cloud intelligence to level up network protection, especially in tackling unknown threats. The ZyWALL ATP Firewall Series not only supports all Zyxel security service such as Web security, Application Security, Malware Blocker, Reputation Filter, etc., but also sandboxing and SecuReporter, and, last but not least, an infographic dashboard, delivering high performance and ensuring comprehensive protection as a self-evolving solution.
| Concurrent connections | 300000 |
|---|---|
| Concurrent users | 10 user(s) |
| Heat dissipation | 42.65 BTU/h |
| Cables included | LAN (RJ-45), RS-232 |
| Ethernet LAN (RJ-45) ports | 4 |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 216 x 143 x 33 mm |
| Weight | 850 g |
| Power consumption (typical) | 12.5 W |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -30 – 70 °C |
| Mean time between failures (MTBF) | 989810.8 h |
| Number of VLANs | 8 |
| VPN tunnels quantity | 40 |
| Firewall throughput | 1000 Mbit/s |
| VPN throughput | 300 Mbit/s |
| Security algorithms | IPSec, SSL/TLS |
| Content filtering | 1 |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
| Certification | FCC Part 15 (Class B), CE (Class B), RCM (Class B), BSMI, LVD |
| WAN connection | Ethernet (RJ-45) |
| Ethernet DMZ ports quantity | 1 |
| SSL performance | 10 transactions/sec |
| Input current | 2 A |
| Maximum data transfer rate | 1000 Mbit/s |
| Active TCP connections (max) | 300000 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| SFP module slots quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Console port | RJ-45 |
| Power consumption (max) | 12.5 W |
| Package width | 284 mm |
| Package depth | 100 mm |
| Package height | 190 mm |
| Package weight | 1.4 kg |
| Built-in fan | Yes |
| Number of console ports | 1 |
| IPSec VPN throughput | 40 Gbit/s |
| Stateful Packet Inspection (SPI) | Yes |
| Maximum connections (SPI) | 1000 |
| HTTPS encryption | Yes |
| Harmonized System (HS) code | 85176990 |
