, , 48 x & 2 x 10 GE combo & 2 x 10GE SFP+
£804.63 Ex VAT
In stock

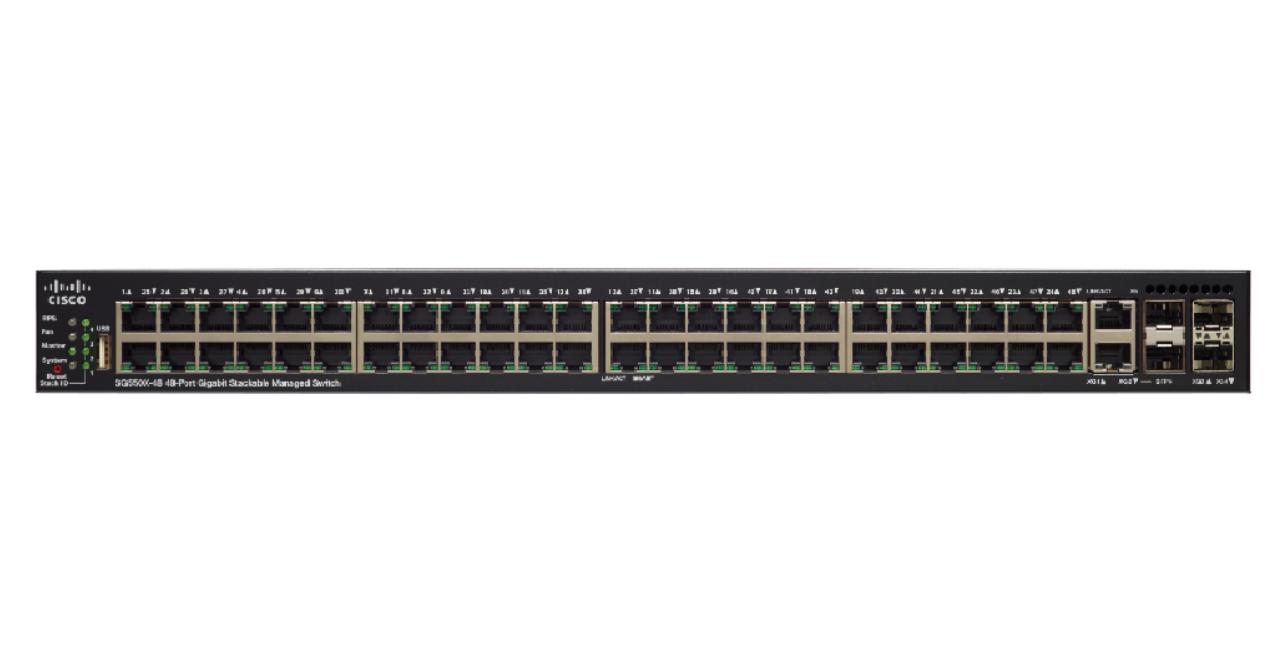

Cisco SG550X-48. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 48, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE…. Rack mounting, Form factor:
Advanced features for demanding environments
Get 10 and advanced capabilities to accelerate your business growth. Our next-generation stackable switches can bring immediate productivity gains to your organization. They also get your network ready for more bandwidth-hungry applications in the future.
Affordable 10
10 delivers 10 times the performance to your network to promote higher productivity and business efficiency. The 550X Series breaks the barrier of 10 adoptions with exceptional affordability.
Superior reliability and resiliency
Keep your network running so your business never slows down. The 550X Series offers true stacking, built-in fan redundancy, a redundant power supply connector, and high-availability protocols.
Advanced features
The 550X Series includes capabilities and management options you need to support applications today and in the future, such as strong security, advanced QoS, comprehensive IPv6 support, and Layer 3 dynamic routing.
The Plus (+) standard provides up to 30 watts of power per port. The 550X switches also support 60W on selected ports to power compact switches and high-power wireless access points.
Energy efficiency
A variety of energy-saving features, including energy-detect mode, cable-length detection, and Energy-Efficient , provide an eco-friendly and cost-effective network solution without compromising performance.
Peace of mind
All 550X Series switches are protected for the life of the product by the Cisco Limited Lifetime Hardware Warranty, including next-business-day advance replacement where available.
| Firmware upgradeable | Yes |
|---|---|
| Product Condition | Cisco Refresh |
| Number of queues | 8 |
| Cables included | AC, Serial |
| Processor frequency | 800 MHz |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Compatible operating systems | Microsoft Windows, Linux, Mac OS X |
| Gigabit Ethernet (copper) ports quantity | 48 |
| pa_built-in-camera | 1U |
| Weight | 3.73 kg |
| Redundant power supply (RPS) support | Yes |
| Heat dissipation | 177.43 BTU/h |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Mean time between failures (MTBF) | 248097 h |
| Management protocols | SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI |
| Number of VLANs | 4094 |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Product colour | Black, Grey |
| Switching capacity | 176 Gbit/s |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| LED indicators | Yes |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Console port | RJ-45 |
| VLAN support | Yes |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 – 240 V |
| Depth | 257 mm |
| Height | 28 mm |
| Width | 440 mm |
| Physical stacking (units) | 8 |
| Packet buffer memory | 3 MB |
| Combo SFP ports quantity | 2 |
| Number of IP interfaces | 256 |
| Number of multicast groups filtered | 256 |
| Number of static routes | 32 |
| Throughput | 130.94 Mpps |
| Quick start guide | Yes |
| Power consumption (max) | 52 W |
| Power supply included | Yes |
| Cable length detection | Yes |
| Cable types supported | Cat5, Cat5e, Cat6a |
| Jumbo frames | 9000 |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Reset button | Yes |
| ARP inspection | Yes |
| SFP+ module slots quantity | 2 |
| Static route | Yes |
| Number of Virtual Output Queuing (VoQ) queues | 7000 |
| Built-in processor | Yes |
| DHCP features | DHCP server |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
