Catalyst 1000FE-24T-4G-L – Switch – – 24 x + 2 x combo SFP/RJ-45 (uplink) + 2 x SFP (mini-GBIC) (Uplink)
Cisco Catalyst C1000FE-24T-4G-L. Switch type: , Switch layer: . Basic switching RJ-45 ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE…

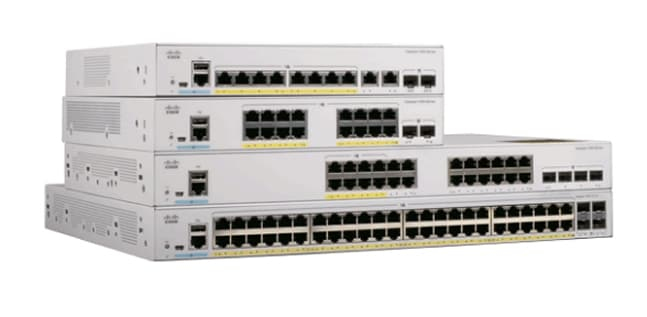

Cisco® Catalyst® 1000 Series Switches are fixed and enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
| Weight | 5200 kg |
|---|---|
| Processor frequency | 800 MHz |
| Product Condition | New Retail |
| Memory type | DRAM |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Weight | 2.63 kg |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -5 – 50 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Non-operating altitude | 0 – 4500 m |
| Mean time between failures (MTBF) | 2026793 h |
| Number of VLANs | 4094 |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| IGMP snooping | Yes |
| Product colour | Grey |
| Switching capacity | 56 Gbit/s |
| Full duplex | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| LED indicators | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| MIB support | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Depth | 240 mm |
| Height | 44 mm |
| Width | 444.5 mm |
| Combo SFP ports quantity | 2 |
| Number of static routes | 16 |
| Jumbo frames | 10240 |
| Authentication | Web-based authentication |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Static route | Yes |
| Authentication type | RADIUS |
| IGMP entries | 1024 |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Forwarding rate | 41.67 Mpps |
| Configuring Location Settings (CLI) | Yes |
| Processor model | ARM7 |
| Built-in processor | Yes |
| DHCP features | DHCP snooping |
| Harmonized System (HS) code | 85176990 |
