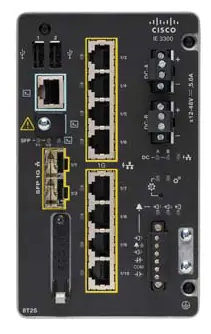

Catalyst IE3300 with 8 GE Copper and 2 GE SFP, Modular, Network Essentials
Cisco Catalyst IE-3300-8T2S-E. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 8, USB 2.0 ports quantity: 2, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE…. DC input voltage: 9.6 – 60 V. Power connector: DC-in jack. Rack mounting
Cisco Catalyst IE3300 Rugged Series Data Sheet
The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
Cisco Catalyst IE3300 Rugged Series switches deliver high-speed connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3300 Rugged Series can be with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
The IE3300 series (with expansion module) supports power budget of up to 360W for /+, shared across 24 ports, and is ideal for connecting -powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
| Weight | 3 kg |
|---|---|
| Number of queues | 8 |
| Product Condition | New Retail |
| Flash memory | 1500 MB |
| Internal memory | 2000 MB |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Weight | 1.7 kg |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 23 W |
| Input current | 3.8 A |
| Operating altitude | 0 – 4572 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -40 – 75 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Mean time between failures (MTBF) | 633420 h |
| Switching protocols | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Management protocols | IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP |
| Number of VLANs | 256 |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| IGMP snooping | Yes |
| Product colour | Black |
| Security algorithms | 802.1x RADIUS, SNMPv3, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Certification | UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55 |
| LED indicators | Yes |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| MIB support | 802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB |
| 10G support | No |
| Networking standards | IEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| Depth | 135 mm |
| Height | 152 mm |
| Width | 91 mm |
| Compatible memory cards | SD |
| International Protection (IP) code | IP20 |
| Power supply included | Yes |
| Jumbo frames | 8996 |
| Authentication | Guest VLAN, MAC-based authentication |
| BPDU filtering/protection | Yes |
| ARP inspection | Yes |
| DIN rail mounting | Yes |
| SFP module slots quantity | 2 |
| DC input voltage | 9.6 – 60 V |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| Power connector | DC-in jack |
| Access Control List (ACL) ingress | 3000 |
| IGMP entries | 1000 |
| DHCP features | DHCP server |
| Harmonized System (HS) code | 85176990 |
