4 FE Combo DL ports, 4 GE combo UL ports, w/FPGA

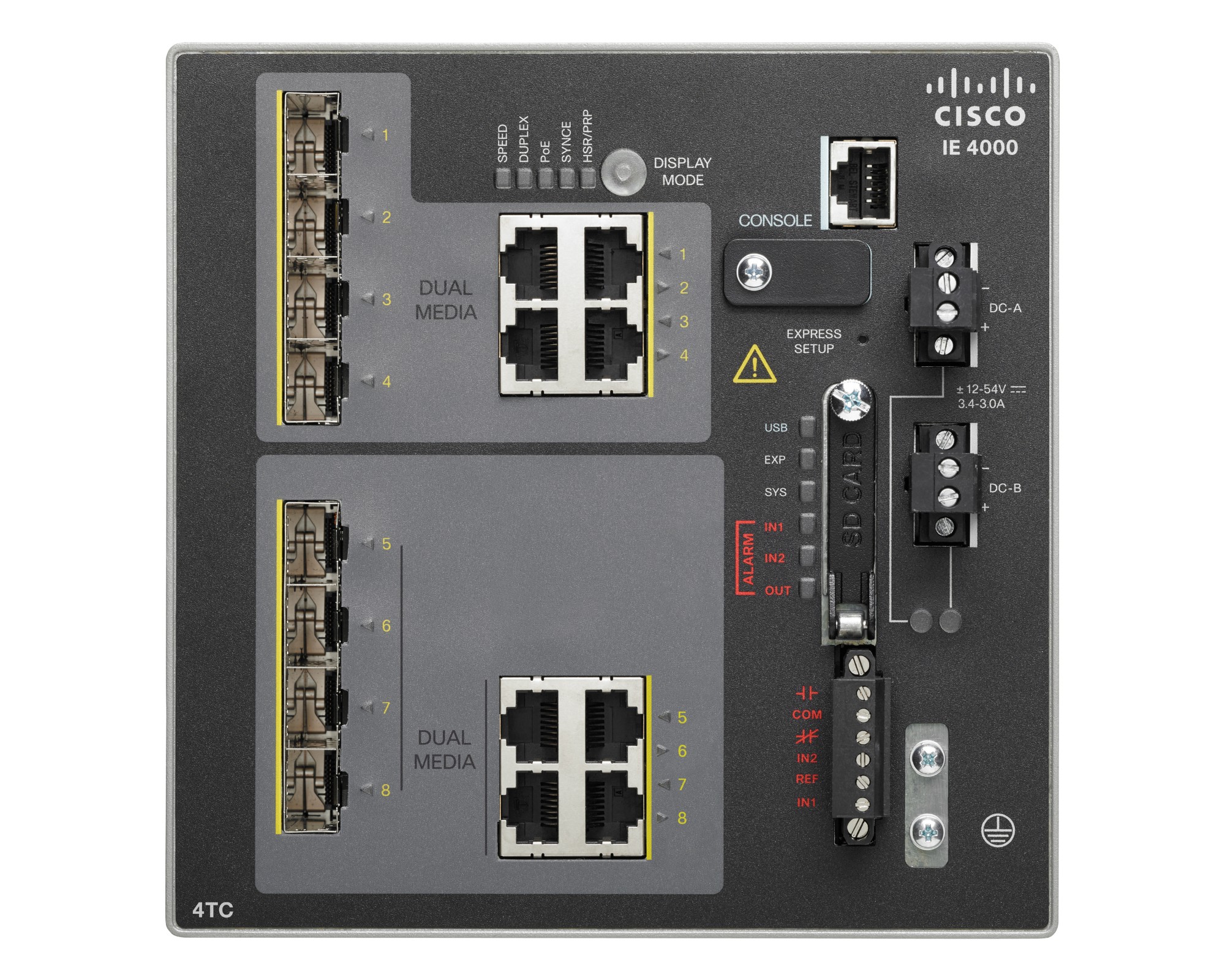

Cisco IE-4000-4TC4G-E. Switch type: , Switch layer: /. Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 8, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at
The Cisco® Industrial (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
| Memory type | DRAM |
|---|---|
| Product Condition | New Retail |
| Flash memory | 128 MB |
| Internal memory | 1024 MB |
| Weight | 2.88 kg |
| Power consumption (typical) | 40 W |
| Operating altitude | 0 – 3962 m |
| Operating temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Non-operating altitude | 0 – 12192 m |
| Mean time between failures (MTBF) | 578730 h |
| Number of VLANs | 1000 |
| Product colour | Black |
| Switching capacity | 20 Gbit/s |
| Full duplex | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Routing entries | 16000 |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at |
| Console port | RJ-45/Mini-USB |
| VLAN support | Yes |
| Depth | 155.4 mm |
| Height | 129.2 mm |
| Width | 155.4 mm |
| DHCP features | DHCP server |
| Virtual LAN features | Private VLAN |
| Harmonized System (HS) code | 85176990 |
