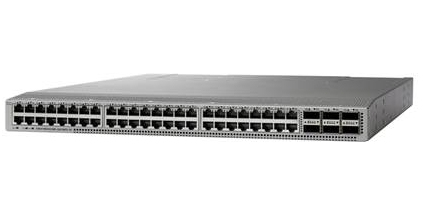

Nexus 9300 with 48p 10G BASE-T and 6p 40G/100G QSFP28, MACsec capable
Cisco Nexus 93108TC-FX. Switch type: , Switch layer: /. Basic switching RJ-45 ports type: 10G (1000), Basic switching RJ-45 ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 512000 entries, Switching capacity: 2160 Gbit/s. Rack mounting, Form factor:
Based on Cisco Cloud Scale technology, the Cisco Nexus® 9300-EX and 9300-FX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.
Cisco Nexus 9300-EX and 9300-FX platform switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
The platform hardware is capable of collecting comprehensive Cisco Tetration Analytics™ telemetry information at line rate across all the ports without adding any latency to the packets or negatively affecting switch performance. This telemetry information is exported every 100 milliseconds by default directly from the switch’s Application-Specific Integrated Circuit (ASIC). This information consists of three types of data:
– Flow information: This information contains information about endpoints, protocols, ports, when the flow started, how long the flow was active, etc.
– Interpacket variation: This information captures any interpacket variations within the flow. Examples include variation in Time To Live (TTL), IP and TCP flags, payload length, etc.
– Context details: Context information is derived outside the packet header, including variation in buffer utilization, packet drops within a flow, association with tunnel endpoints, etc.
| Flash memory | 128000 MB |
|---|---|
| Product Condition | New Retail |
| Internal memory | 24000 MB |
| Power consumption (typical) | 276 W |
| Operating altitude | 0 – 4000 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Mean time between failures (MTBF) | 319790 h |
| Number of VLANs | 3967 |
| Spanning tree protocol | Yes |
| IGMP snooping | Yes |
| Product colour | Grey |
| Noise level | 77.8 dB |
| Switching capacity | 2160 Gbit/s |
| Access Control List (ACL) | Yes |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| 10G support | Yes |
| Fiber optic connector | QSFP28 |
| USB 2.0 ports quantity | 1 |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Depth | 571 mm |
| Height | 44 mm |
| Width | 439 mm |
| Packet buffer memory | 40 MB |
| Throughput | 850 Mpps |
| Power consumption (max) | 460 W |
| QSFP+ module slots quantity | 6 |
| Airflow direction | Back-to-front airflow, Front-to-back airflow |
| Multiprotocol Label Switching (MPLS) | Yes |
| Access Control List (ACL) egress | 2000 |
| Access Control List (ACL) ingress | 5000 |
| Routing protocols | EIGRP,HSRP,OSPF,RIP-2 |
| Number of fans | 4 fan(s) |
| Built-in processor | Yes |
