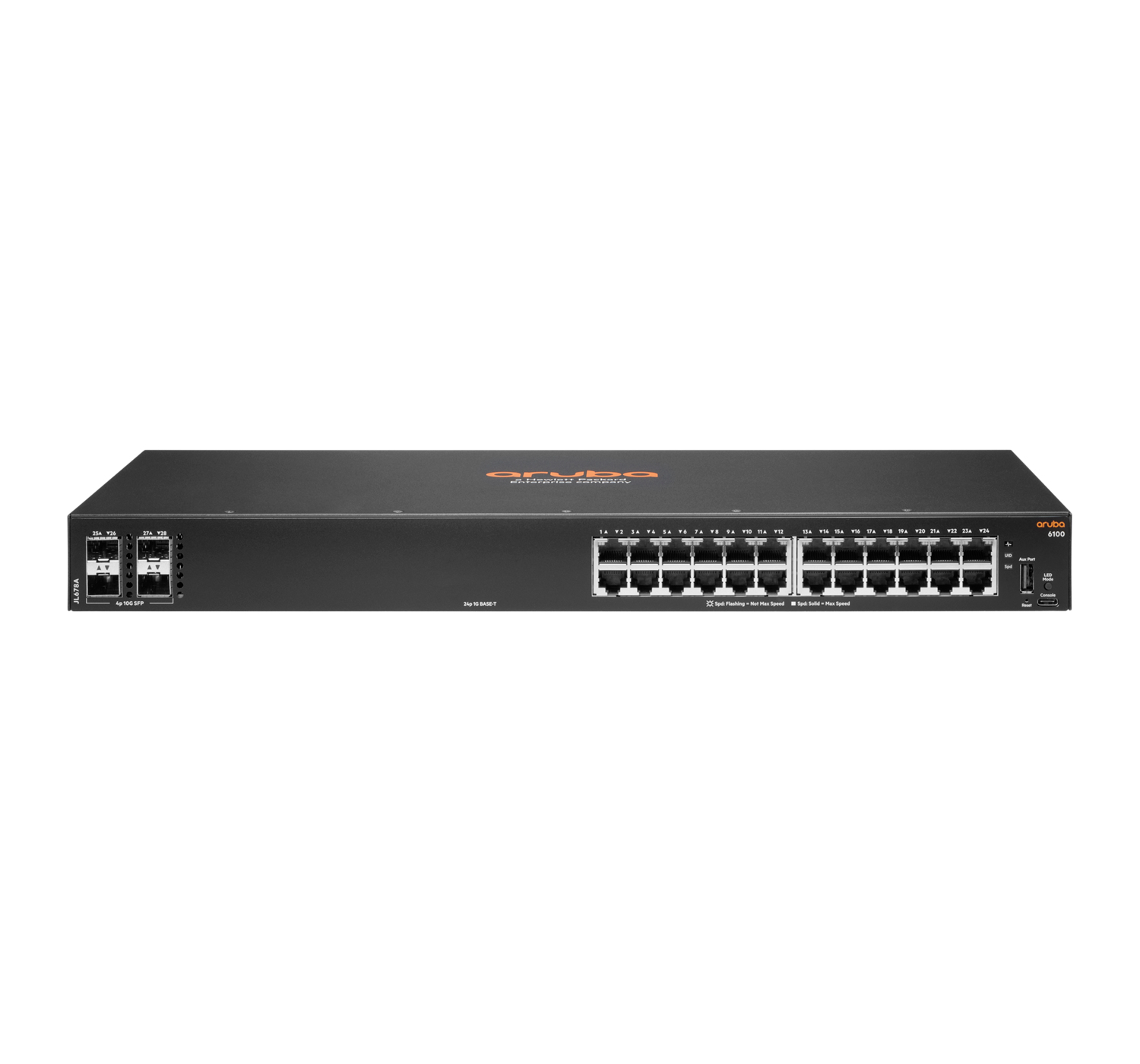

Aruba 6100 24G 4SFP+ Switch
HPE Aruba 6100 24G 4SFP+. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 24, Console port: USB. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Rack mounting, Form factor:
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Features
Entry Level Aruba CX Access Layer Switches
– The Aruba CX 6100 Switch Series offers connectivity with high speed uplinks and optional to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
– Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
– Fully- enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
– Right size deployment with choice of 12, 24, and 48 port models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 .
– Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
– The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
– Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 for up to 30W per port.
– Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
– The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
– Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
– Software-defined ready with REST APIs for fine-grained programmability of network tasks.
– Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
| Weight | 3 kg |
|---|---|
| Processor frequency | 1016 MHz |
| Product Condition | New Retail |
| Memory type | DDR3-SDRAM |
| Flash memory | 16 MB |
| Internal memory | 4096 MB |
| Form factor | 1U |
| Weight | 2.6 kg |
| Storage relative humidity (H-H) | 15 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| Product colour | Black |
| Switching capacity | 128 Gbit/s |
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Console port | USB |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Depth | 201 mm |
| Height | 44 mm |
| Width | 442 mm |
| Virtual stacking (units) | 16 |
| Packet buffer memory | 12.38 MB |
| Latency (1 Gbps) | 1.5 µs |
| Latency (10 Gbps) | 1.8 µs |
| Throughput | 95.2 Mpps |
| Power consumption (max) | 33 W |
| Power supply included | Yes |
| Authentication | MAC-based authentication |
| SFP+ module slots quantity | 4 |
| Authentication type | RADIUS, TACACS+ |
| Airflow direction | Side-to-side airflow |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
| DHCP features | DHCP client |
| Harmonized System (HS) code | 85176990 |
| Power source | AC |
