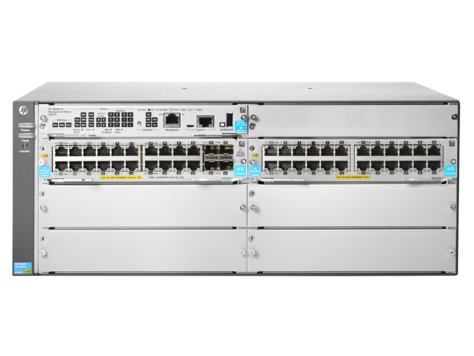

5406R 44GT + and 4-port SFP+ (No PSU) v3 z Switch
HPE 5406R 44GT + & 4-port SFP+ (No PSU) v3 z. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 44. Full duplex. MAC address table: 64000 entries, Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u. . Rack mounting, Form factor: 4U
The HP 5400R z Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi- ports for high-speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.
Robust virtualization with HP AllianceOne solutions, hitless failover, QoS, and security with full features and flexible connectivity including 40 ports and full +, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.
Features
Power and Innovation To Converge Your Mobile Campus
– The HP 5400R z Switch Series is an industry-leading mobile campus access solution with HP Smart Rate multi- ports for high-speed connectivity for next wave 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to converged campus networks.
– Based on the 6th generation HP Networking ASIC, the 5400R z Switch Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency, unprecedented programmability, and leading edge SDN applications.
– Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate of 40 GbE, up to 96 line rate 10GbE ports (SFP+ and 10GBASE-T), 1GbE and up to 288 ports of + with internal power supplies.
– SDN ready with OpenFlow 1.3 supporting future enhancements for your network.
– License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF, and robust QoS.
Resiliency and High Availability at the Edge
– The HP 5400R z Switch Series using the sixth generation HP Networking ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
– Nonstop switching and routing for improved support of applications such as unified communications and enhanced high availability.
– Redundant management and power systems enhance system availability and continuity of operations.
– Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
– Powerful virtualization with versatile HP AllianceOne service modules.
Robust Security and Dynamic Quality of Service (QoS)
– The HP 5400R z Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
– The 5400R z Switch Series supports flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACSec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
– Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
– Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access.
– Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Single View of the Network and Industry-Leading Warranty
– The HP 5400R z Switch Series can be seamlessly with HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
– RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
– Limited Lifetime Warranty 2.0 includes 3 years 24×7 phone support.
| Weight | 3 kg |
|---|---|
| Processor frequency | 1200 MHz |
| Product Condition | New Retail |
| Memory type | DDR3-SDRAM |
| Flash memory | 16 MB |
| Internal memory | 4096 MB |
| pa_built-in-camera | 4U |
| Weight | 12.8 kg |
| Storage relative humidity (H-H) | 15 – 95% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| IGMP snooping | Yes |
| Product colour | Grey |
| Noise level | 44 dB |
| Switching capacity | 960 Gbit/s |
| Full duplex | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Routing entries | 10000 |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Depth | 450.9 mm |
| Height | 175.3 mm |
| Width | 444.5 mm |
| Compatible memory cards | SD |
| Auto-sensing | Yes |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10 Gbps) | 1.8 µs |
| Throughput | 571.4 Mpps |
| Power supply included | No |
| SFP module slots quantity | 4 |
| Processor model | QorIQ P2020 |
| Built-in processor | Yes |
| DHCP features | DHCP server |
| Harmonized System (HS) code | 85176990 |
