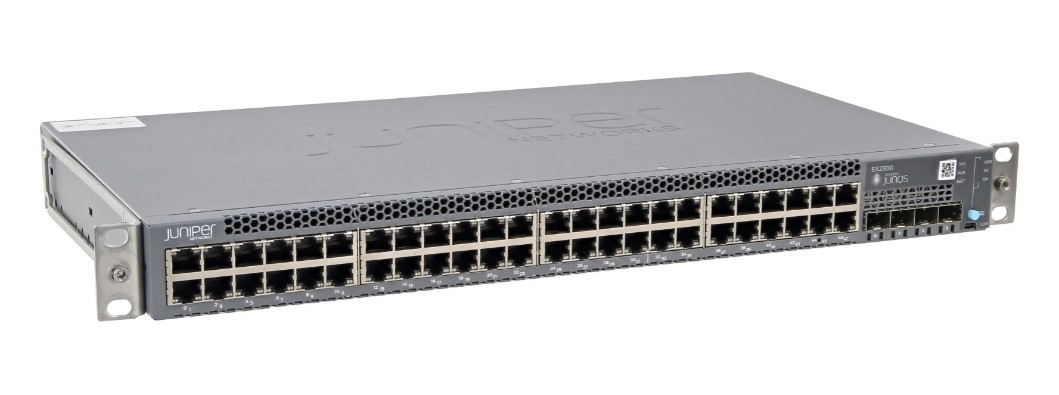

The Juniper EX2300-48T is a compact, high-performance Layer 2 and Layer 3 Ethernet switch, delivering enterprise-grade functionality in a cost-effective form factor. This fixed-configuration switch features 48 10/100/1000BASE-T ports and four high-speed 1/10GbE SFP/SFP+ uplink ports, making it ideal for access-layer deployments in branch offices, campus networks, and remote sites where performance, efficiency, and reliability are essential.
With support for Juniper’s Virtual Chassis technology, the EX2300-48T allows up to four switches to be interconnected and operated as a single logical device. This dramatically simplifies network management and supports seamless scalability. Integrated Layer 3 features, including RIP, OSPF, and static routing, offer enhanced control and flexibility for dynamic network environments.
Optimised for energy efficiency, the EX2300-48T supports Energy Efficient Ethernet (EEE) and low-acoustic fans, while its 10.2-inch depth allows for easy deployment in space-constrained environments. Managed through the Juniper Mist Cloud with Wired Assurance, it provides AI-driven insights and automation to improve operational simplicity and network reliability.
Steel City Consulting offers this model through the Juniper Certified Pre-Owned programme—a trusted option for customers seeking quality and affordability. Each unit is refurbished and validated directly by Juniper to meet strict performance and reliability standards. This CPO device includes:
Firmware and ECO Access: Stay secure and up to date with the latest Junos OS firmware and engineering updates.
Juniper Care Eligibility: Access hardware replacement, expert support, and software upgrades through Juniper Care services.
Genuine Juniper Warranty: Enjoy coverage with a full Juniper Networks warranty for peace of mind.
Explore the full benefits of Juniper Certified Pre-Owned equipment and discover cost-effective, high-performance network solutions for your business.
| Weight | 3 kg |
|---|---|
| Number of queues | 8 |
| Product Condition | New Retail |
| Processor frequency | 1250 MHz |
| Memory type | DRAM |
| Flash memory | 2048 MB |
| Internal memory | 2048 MB |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| Weight | 3.76 kg |
| Power consumption (typical) | 70 W |
| Operating altitude | 0 – 3962 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -40 – 70 °C |
| Non-operating altitude | 0 – 4572 m |
| Supported network protocols | HTTP/HTTPs, RIP v1, RIPv2, IPv4, IPv6 |
| Number of VLANs | 4093 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Product colour | Grey |
| Noise level | 34.6 dB |
| Switching capacity | 176 Gbit/s |
| Security algorithms | SNMP,SSH,SSH-2 |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Certification | FCC 47CFR Part 15 Class A<br />EN 55022 Class A<br />ICES-003 Class A<br />VCCI Class A<br />AS/NZS CISPR 22 Class A<br />CISPR 22 Class A<br />EN 55024<br />EN 300386<br />CE |
| Safety | UL-UL60950-1, C-UL to CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| LED indicators | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| MIB support | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z |
| Fiber optic connector | LC,SX |
| Fiber type | Multi-mode |
| Console port | RJ-45/Mini-USB |
| VLAN support | Yes |
| Depth | 259 mm |
| Height | 44.5 mm |
| Width | 441.9 mm |
| Number of multicast groups filtered | 1024 |
| Throughput | 130 Mpps |
| Jumbo frames | 9216 |
| Authentication | Port-based authentication |
| SFP+ module slots quantity | 4 |
| DHCP features | DHCP server,DHCP client |
| Virtual LAN features | Tagged VLAN,Protocol-based VLAN,Port-based VLAN |
