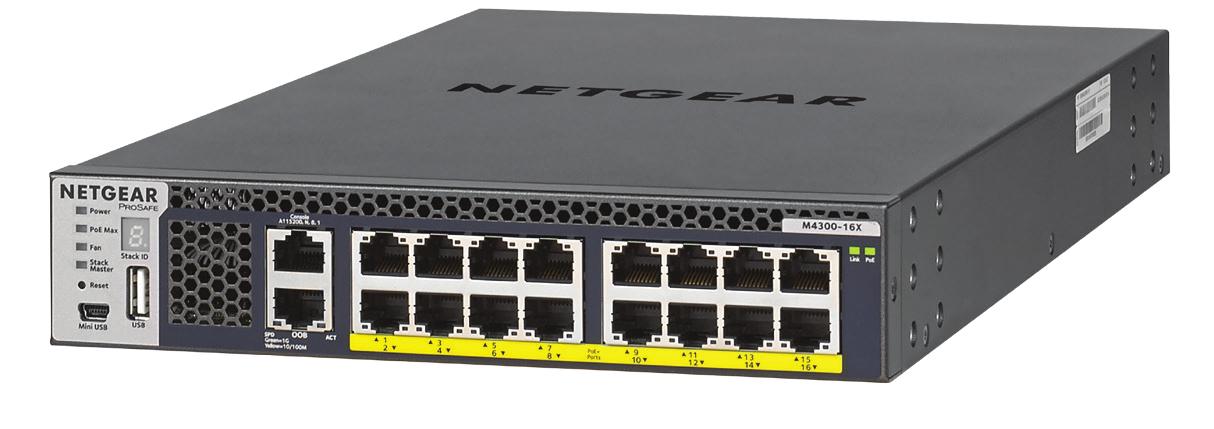

M4300-16X, 320 Gbps, 238 Mpps, 16x 100/1000/2.5/5/10GBASE-T RJ-45, PoE+, 299W PSU, 212x44x345 mm
NETGEAR M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
| Number of queues | 8 |
|---|---|
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Form factor | 1U |
| Weight | 3.22 kg |
| Heat dissipation | 186 BTU/h |
| Mean time between failures (MTBF) | 690301 h |
| Number of VLANs | 4093 |
| IP routing | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| IGMP snooping | Yes |
| Product colour | Black |
| Noise level | 36 dB |
| Switching capacity | 320 Gbit/s |
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Number of power supply units | 1 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| VLAN support | Yes |
| Depth | 345 mm |
| Height | 44 mm |
| Width | 212 mm |
| Physical stacking (units) | 8 |
| Auto-sensing | Yes |
| Number of multicast groups filtered | 4000 |
| Number of static routes | 64 |
| Throughput | 238 Mpps |
| Total Power over Ethernet (PoE) budget | 199 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power consumption (max) | 49 W |
| Power supply included | Yes |
| Jumbo frames | 9000 |
| Rack mount kit | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| BPDU filtering/protection | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Airflow direction | Front-to-back airflow |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Built-in processor | Yes |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Harmonized System (HS) code | 85176990 |
