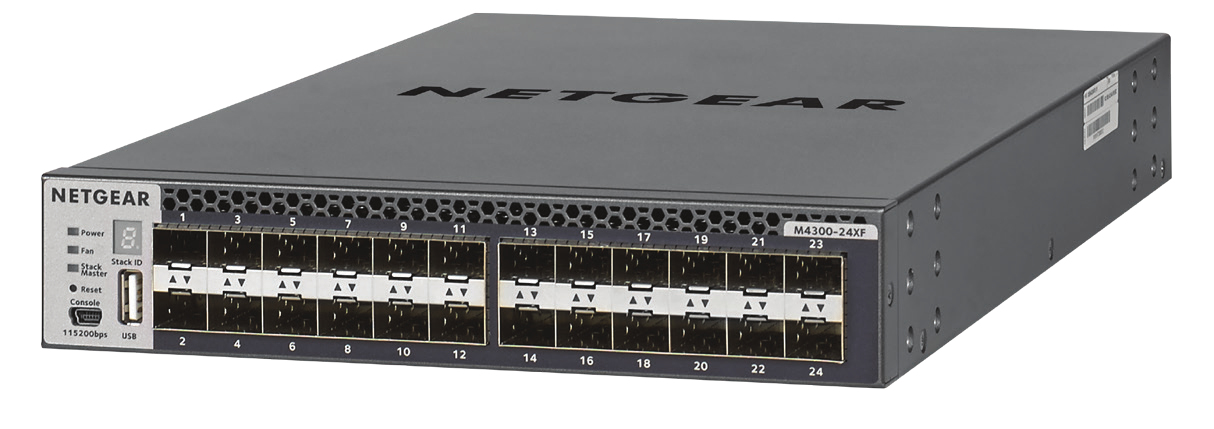

M4300-24XF, 480Gbps, 357 Mpps, 24x 10GBASE-X SFP+, 2x 10GBASE-T RJ-45, Mini-USB, RS-232, 212x44x345 mm
NETGEAR M4300-24XF. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,…. Rack mounting, Form factor: 1U
The M4300 Stackable L3 Managed Switch Series comes with 40G, 10G and 1G models in a variety of form factors including PoE+ full provisioning. M4300 Switch Series delivers IPv4/IPv6 rich services for mid-enterprise edge and SMB core with mixed stacking between 40-, 10- and 1-Gigabit models. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing. M4300 is ideal for server aggregation, wireless access, unified communications and Video-over-IP.
| Number of queues | 8 |
|---|---|
| Processor frequency | 800 MHz |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Copper ethernet cabling technology | 10GBASE-T |
| pa_built-in-camera | 1U |
| Weight | 3.56 kg |
| Heat dissipation | 330.6 BTU/h |
| Mean time between failures (MTBF) | 968447 h |
| Number of VLANs | 4093 |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| IGMP snooping | Yes |
| Product colour | Black, Grey |
| Noise level | 39.7 dB |
| Switching capacity | 480 Gbit/s |
| Full duplex | Yes |
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Number of power supply units | 1 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Fiber ethernet cabling technology | 10GBASE-X |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| VLAN support | Yes |
| Depth | 345 mm |
| Height | 44 mm |
| Width | 212 mm |
| Physical stacking (units) | 8 |
| Packet buffer memory | 32 MB |
| Auto-sensing | Yes |
| Latency (1 Gbps) | 2.333 µs |
| Number of static routes | 64 |
| Latency (10 Gbps) | 1.323 µs |
| Throughput | 357 Mpps |
| Power consumption (max) | 87.2 W |
| Power supply included | Yes |
| Jumbo frames | 9000 |
| Access Control List (ACL) rules | 64 |
| BPDU filtering/protection | Yes |
| SFP+ module slots quantity | 24 |
| Static route | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Airflow direction | Front-to-back airflow |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Policy-based routing | Yes |
| Built-in processor | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Harmonized System (HS) code | 85176990 |
