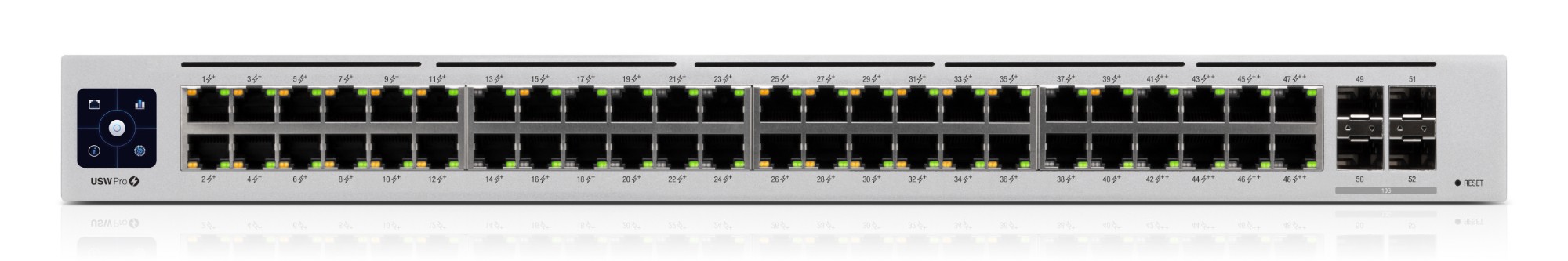

USW-Pro-48-POE Gen 2, AC/DC, Internal, 660W, (48) 10/100/1000 RJ45 Ports, (4) 1/10 Gbps SFP+, 442.4 x 399.6 x 43.7 mm
Ubiquiti Networks UniFi Pro 48-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 44 – 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
| Form factor | 1U |
|---|---|
| Weight | 6.25 kg |
| Input current | 11.54 A |
| Operating temperature (T-T) | -5 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Port mirroring | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| Product colour | Silver |
| Switching capacity | 176 Gbit/s |
| Full duplex | Yes |
| Certification | CE, FCC, IC |
| LED indicators | Activity, Link, PoE, Speed, System |
| Switch layer | L2/L3 |
| Switch type | Managed |
| 10G support | Yes |
| Number of power supply units | 1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Auto-sensing | Yes |
| Throughput | 88000 Mpps |
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Power supply included | Yes |
| Power over Ethernet (PoE) power per port | 64 W |
| SFP+ module slots quantity | 4 |
| DC input voltage | 44 – 57 V |
| Static route | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Forwarding rate | 130.944 Mpps |
| DHCP features | DHCP server |
| Harmonized System (HS) code | 85176990 |
