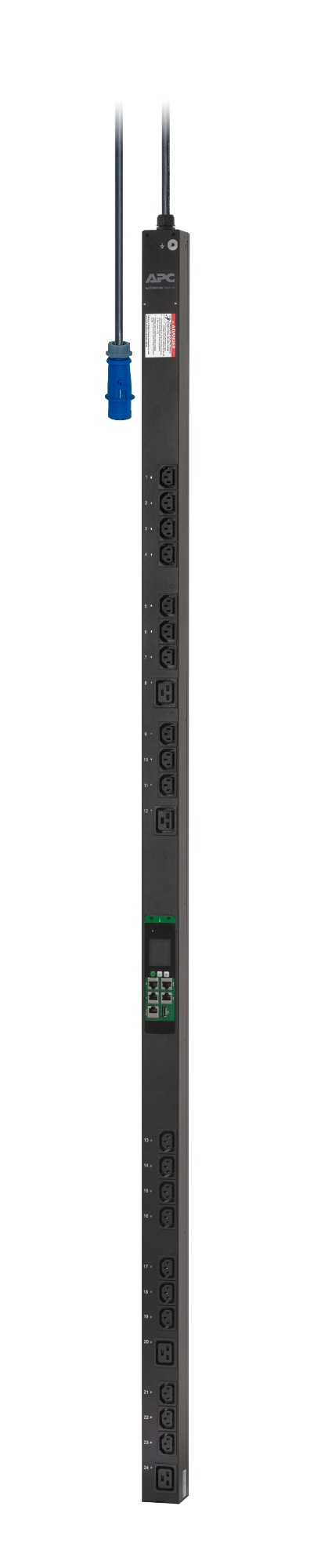

Metered-by-Outlet with Switching, ZeroU, 16A, 230V, (20) C13 & (4) C19
APC EasyPDU. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 200 – 240 V, Maximum current: 16 A, AC input frequency: 50 – 60 Hz. Width: 55 mm, Depth: 56 mm, Height: 1800 mm
Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.
1% Metering Accuracy
Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.
Metering-by-Outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
Remote Individual Outlet Control
Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
| Weight | 3 kg |
|---|---|
| Mounting | Vertical |
| Nominal input voltage | 200 – 240 V |
| Maximum current | 16 A |
| Cable length | 3 m |
| Output voltage | 230 V |
| Product colour | Black |
| Package weight | 7.84 kg |
| Weight | 6.67 kg |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Metered |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| LED indicators | Yes |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Type | Single-phase |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Daisy chain | Yes |
| Rack capacity | 0U |
| AC input frequency | 50 – 60 Hz |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
