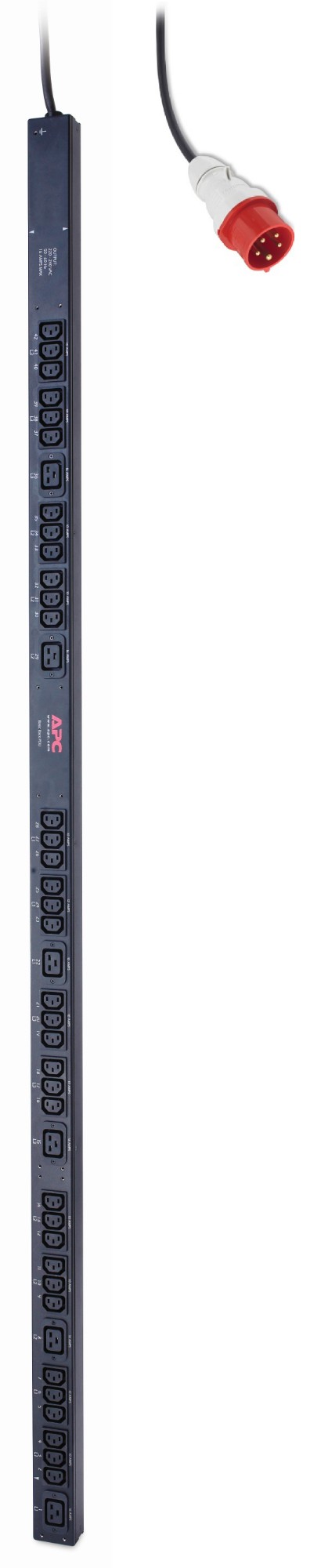

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A 3P+N+PE. Cable length: 0.91 m, Certification: C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD. Nominal input voltage: 400 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.45 kg
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Cord Length: 3 feet ( 0.91 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.
– Low Cost Power Distribution.
– Vertical mounting capability.
– Toolless mounting capability.
– Multi-branch power input.
| Weight | 3 kg |
|---|---|
| Output connections | (36) IEC 320 C13 |
| Mounting | Vertical |
| Input connection type | IEC 309 16A 3P+N+PE |
| Certification | C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD |
| Maximum input current per phase | 16 A |
| Nominal input voltage | 400 V |
| Maximum total current draw per phase | 16 A |
| Cable length | 0.91 m |
| Load capacity | 11040 VA |
| Product colour | Black |
| Dimensions (WxDxH) | 56 x 44 x 1619 mm |
| Weight | 5.45 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Basic |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum power | 11000 W |
| Rack capacity | 0U |
| AC input frequency | 47/63 Hz |
