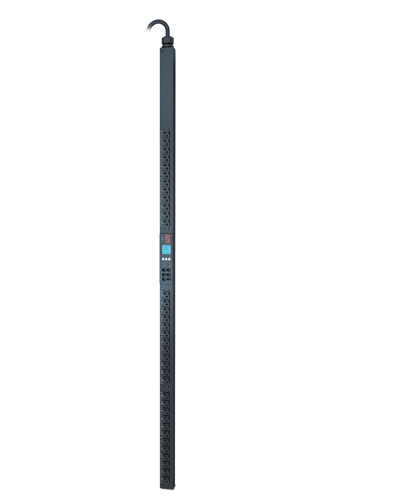

Rack 2G, Metered, NEMA 5-20R x 36, NEMA 1-20P, 5760 VA
APC AP8862. PDU types: Metered, Mounting: Horizontal/Vertical, Product colour: . AC outlets quantity: 36 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA 1-20P. Cable length: 1.83 m, Certification: cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed. Nominal input voltage: 208 V, AC input frequency: 50 – 60 Hz, Nominal output voltage: 120 V. Dimensions (WxDxH): 55 x 44 x 1791 mm, Weight: 6.04 kg
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Mounting | Horizontal/Vertical |
|---|---|
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed |
| Maximum input current per phase | 20 A |
| Nominal input voltage | 208 V |
| Maximum total current draw per phase | 16 A |
| Cable length | 1.83 m |
| Load capacity | 5760 VA |
| Product colour | Black |
| Package weight | 8.12 kg |
| Package dimensions (WxDxH) | 160 x 108 x 2006 mm |
| Dimensions (WxDxH) | 55 x 44 x 1791 mm |
| Weight | 6.04 kg |
| Nominal output voltage | 120 V |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Metered |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| LED indicators | Yes |
| Power plug | NEMA L21-20P |
| AC outlet types | NEMA 5–20R |
| Operating temperature (T-T) | 23 – 113 °F |
| AC input frequency | 50 – 60 Hz |
| Sustainability certificates | RoHS |
