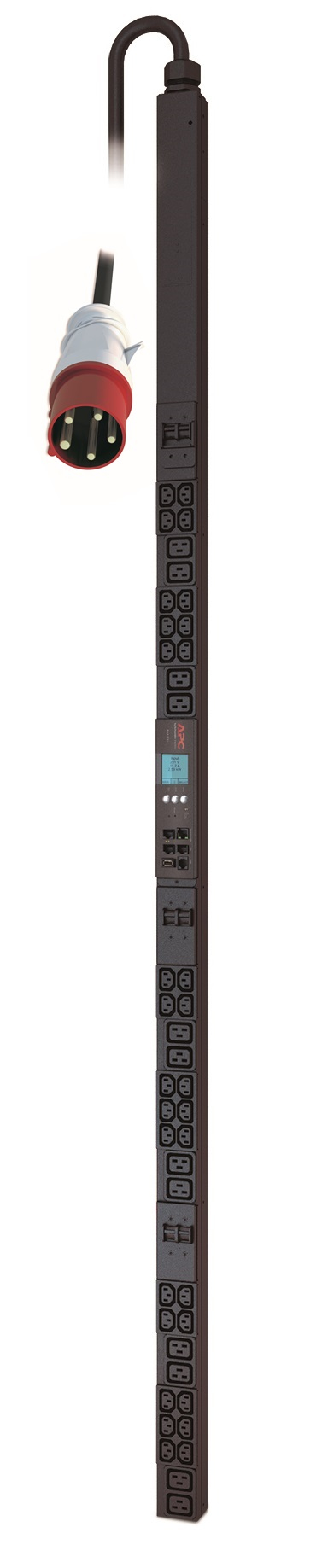

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19
APC AP8886. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m, Certification: EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 32 A, AC input frequency: 50 – 60 Hz
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
| Weight | 3 kg |
|---|---|
| Output connections | 30 x IEC 320 C13 |
| Mounting | Vertical |
| Certification | EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE |
| Maximum input current per phase | 32 A |
| Nominal input voltage | 400 V |
| Maximum current | 32 A |
| Cable length | 1.83 m |
| Load capacity | 22080 VA |
| Product colour | Black |
| Package weight | 11.6 kg |
| Package dimensions (WxDxH) | 170 x 112 x 2050 mm |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Weight | 8.72 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | 0 – 55 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Metered |
| Power protection features | Overload |
| Monitoring | Current, Power, Voltage |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| LED indicators | Yes |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Maximum power | 22000 W |
| Rack capacity | 0U |
| AC input frequency | 50 – 60 Hz |
| Sustainability certificates | RoHS |
