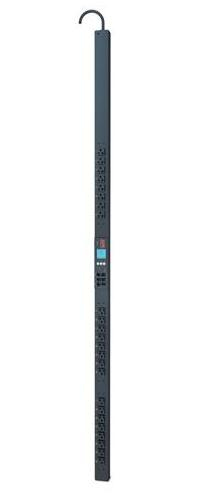

New RACK PDU 100-120V 20A 24X5-20R 0U 2G METERED
APC AP8830. PDU types: Metered, Product colour: , Display: LED. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA L5-20R, Input connection type: NEMA L5-20P. Cable length: 3 m, Certification: cUL, FCC, ICES-003, UL 60950-1. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50 – 60 Hz. Dimensions (WxDxH): 55 x 44 x 1791 mm, Weight: 5.59 kg
Rack PDU 2G, Metered, ZeroU, 20A, 100-120V, (24) 5-20R
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
| Input connection type | NEMA L5-20P |
|---|---|
| Certification | cUL, FCC, ICES-003, UL 60950-1 |
| Nominal input voltage | 100-120 V |
| Maximum current | 20 A |
| Cable length | 3 m |
| Load capacity | 1920 VA |
| Product colour | Black |
| Package weight | 7.4 kg |
| Package dimensions (WxDxH) | 164 x 108 x 2006 mm |
| Dimensions (WxDxH) | 55 x 44 x 1791 mm |
| Weight | 5.59 kg |
| Nominal output voltage | 100-120 V |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Metered |
| Display | LED |
| Operating altitude | 0 – 15000 m |
| LED indicators | Yes |
| AC outlet types | NEMA L5-20R |
| Maximum power | 14400 W |
| AC input frequency | 50 – 60 Hz |
| Sustainability certificates | RoHS |
