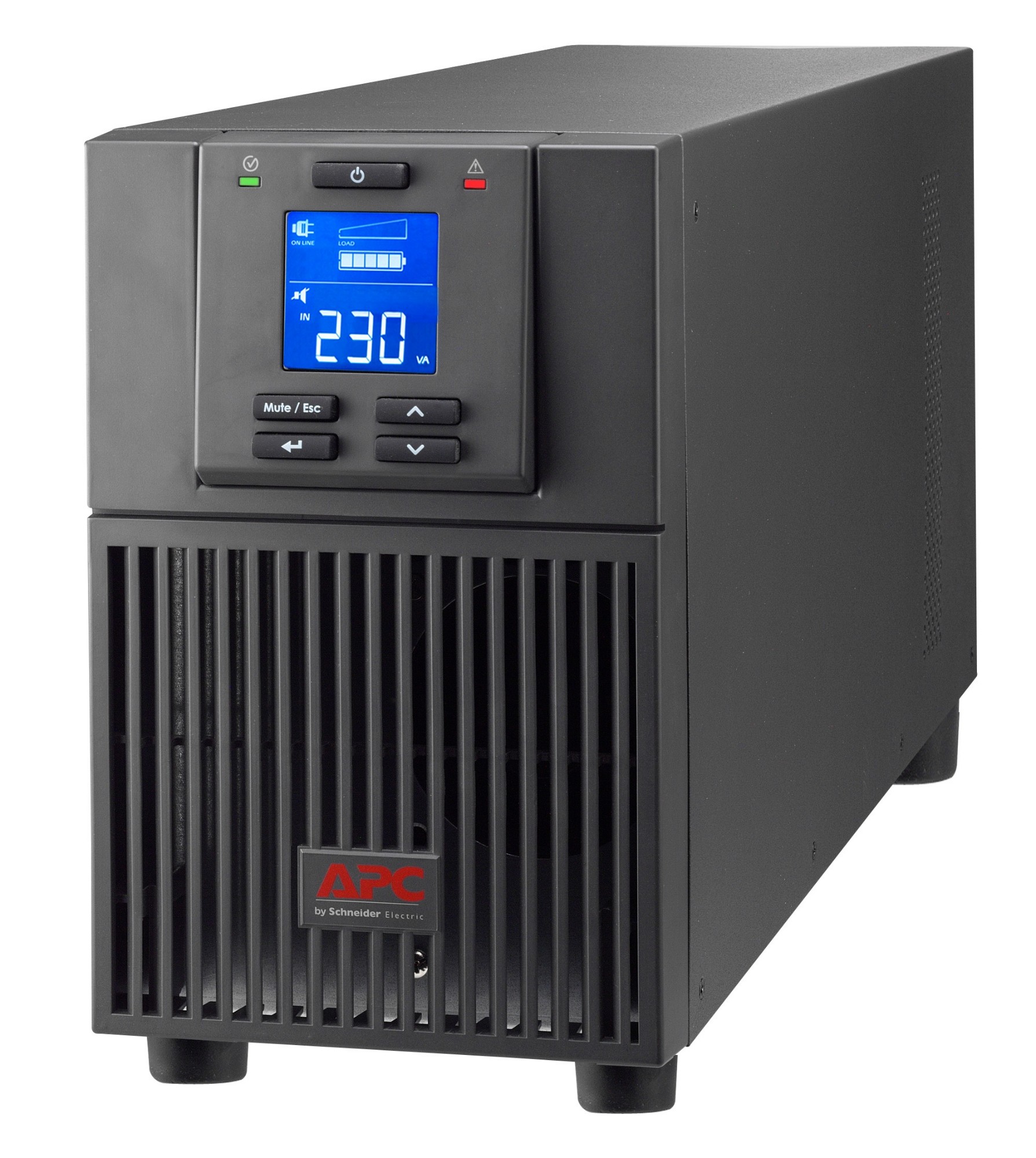

SRV2KI, 1.6kW, 230V, 50/60Hz, 4x IEC 320 C13, IEC-320 C14, USB, 145x400x238 mm
APC SRV2KI. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Tower, Product colour: , Display type: LCD. Width: 145 mm, Depth: 400 mm, Height: 238 mm
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS load or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC’s Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
| Weight | 19491.5 kg |
|---|---|
| Form factor | Tower |
| USB 2.0 ports quantity | 1 |
| Package weight | 18.1 kg |
| Weight | 16.8 kg |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Surge energy rating | 600 J |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Non-operating altitude | 0 – 14763.6 m |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2, REACH |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Depth | 400 mm |
| Height | 238 mm |
| Width | 145 mm |
| Surge protection | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Crest factor | 3:1 |
| RS-232 ports | 1 |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 160 V |
| Waveform | Sine |
| Package width | 235 mm |
| Package depth | 525 mm |
| Package height | 355 mm |
| Output frequency | 50/60 Hz |
| Cables included | USB cable |
| Manual | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RS-232 |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| USB port type | USB Type-B |
| ECO mode | Yes |
| Input frequency | 40 – 70 Hz |
| Sustainability certificates | RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
