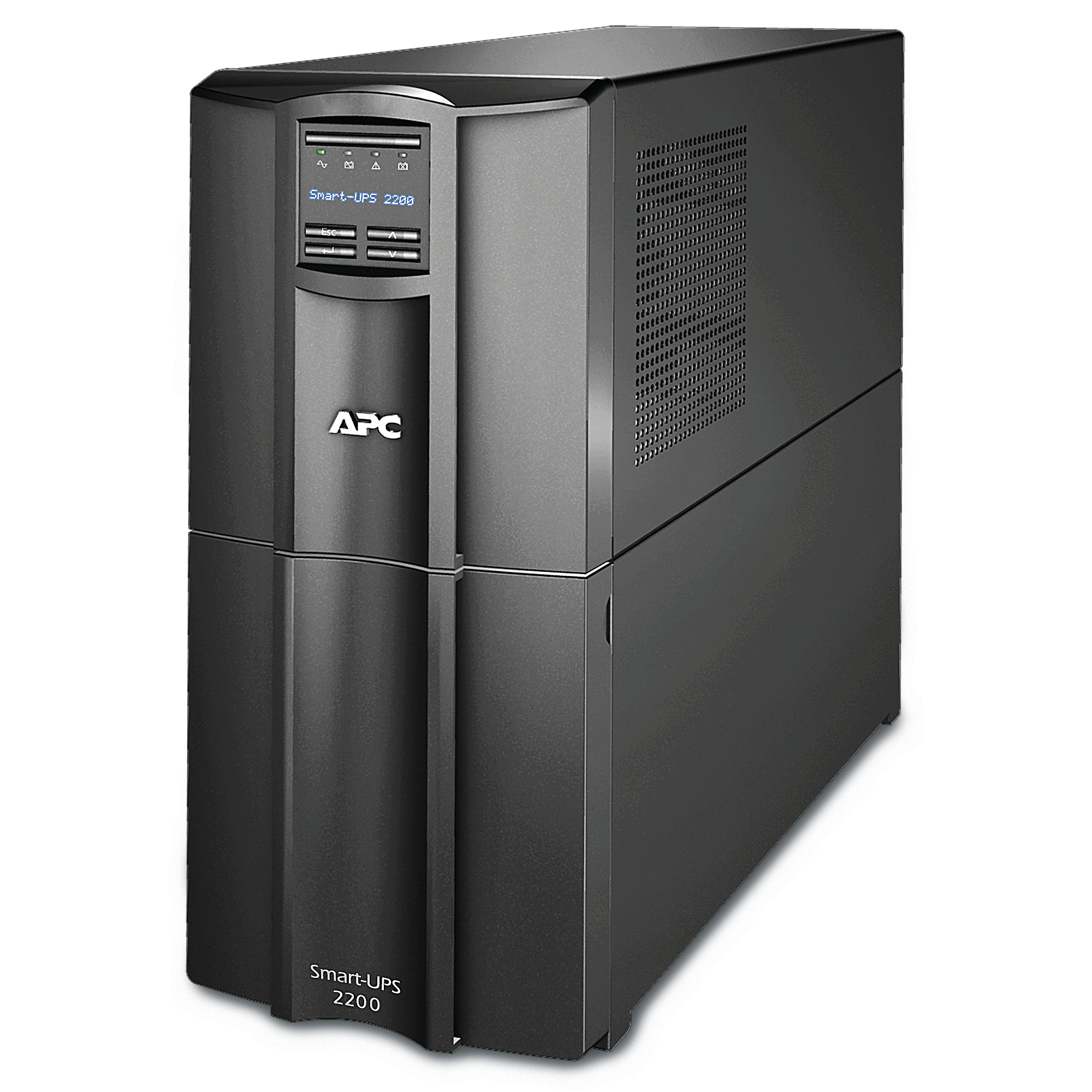

Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD
APC Smart-UPS 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlets quantity: 9 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 8.7 min, Typical backup time at half load: 25 min. Product colour: , Display type: LCD, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE. Width: 197 mm, Depth: 544 mm, Height: 435 mm
| Weight | 3 kg |
|---|---|
| Typical backup time at full load | 8.7 min |
| Typical backup time at half load | 25 min |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Package weight | 61.9 kg |
| Weight | 48.8 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 365 J |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 45 dB |
| Products per pallet | 9 pc(s) |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Response time | 6 ms |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Depth | 544 mm |
| Height | 435 mm |
| Width | 197 mm |
| AC outlets quantity | 9 AC outlet(s) |
| Power protection features | Over voltage, Overload |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Package width | 381 mm |
| Package depth | 762 mm |
| Package height | 699 mm |
| Cables included | RS-232, USB cable |
| Serial interface | Yes |
| USB port | Yes |
| SmartSlot | Yes |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Battery replacement |
| USB port type | USB Type-A |
| Input frequency | 50/60 Hz |
| Sustainability certificates | Green Premium, RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
