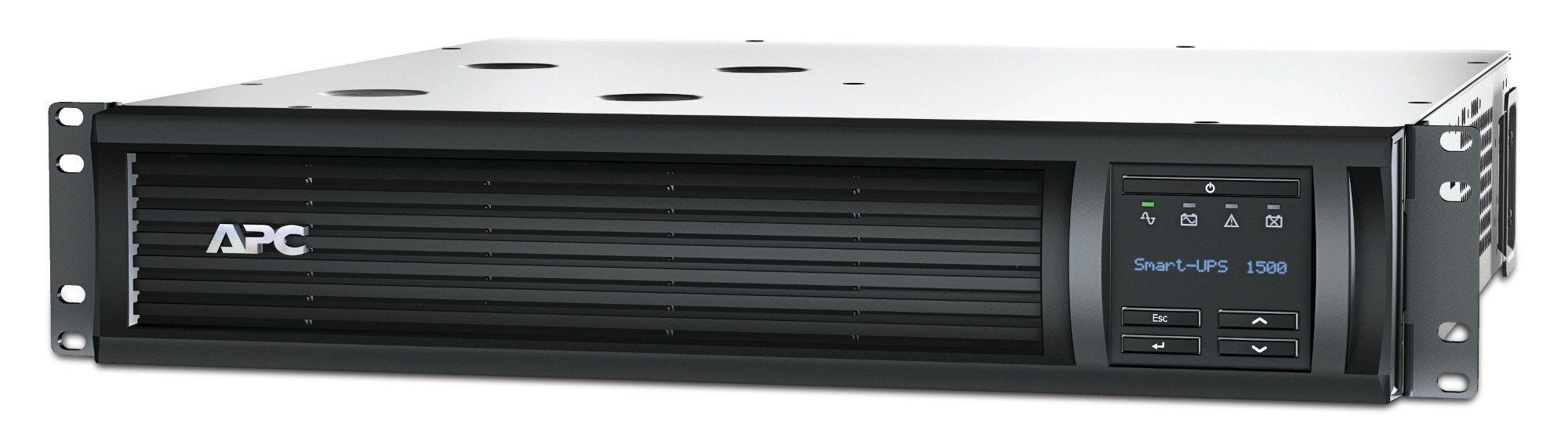

Smart-UPS 1500VA, LCD, RM 2U, 120V with SmartConnect
APC SMT1500RM2UC. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1000 W. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: , Rack capacity: 2U. Width: 432 mm, Depth: 477 mm, Height: 86 mm
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Cable length | 2.44 m |
|---|---|
| Form factor | Rackmount |
| Package weight | 32.1 kg |
| Weight | 26.5 kg |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 680 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 45 dB |
| Certification | REACH |
| LED indicators | Status |
| Audible alarm(s) | Yes |
| Response time | 10 ms |
| Depth | 477 mm |
| Height | 86 mm |
| Width | 432 mm |
| EMI/RFI noise filtering | Yes |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power protection features | Short circuit |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Input operation voltage (max) | 154 V |
| Input operation voltage (min) | 75 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of batteries supported | 1 |
| Package width | 590 mm |
| Package depth | 610 mm |
| Package height | 235 mm |
| Web-based management | Yes |
| Serial interface | Yes |
| USB port | Yes |
| SmartSlot | Yes |
| Battery life (max) | 6 year(s) |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Rack capacity | 2U |
| Input frequency | 50/60 Hz |
| Sustainability certificates | RoHS, ENERGY STAR |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
