1.44 kVA, 1.2 kW, 120V, 50/60Hz, 645J, 40dB, 432x490x89mm, 24.82kg,

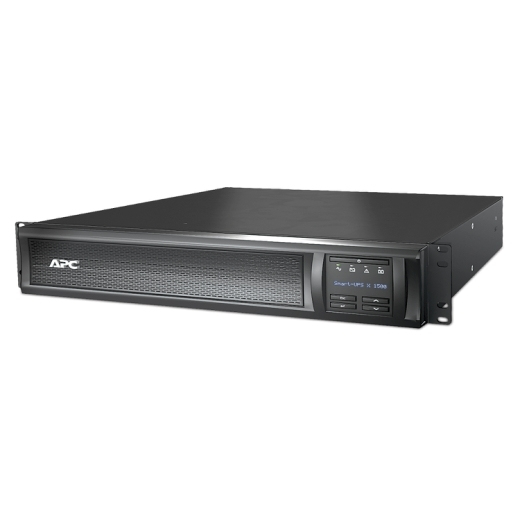

APC SMX1500RM2UC. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1200 W. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: , Rack capacity: 2U. Width: 432 mm, Depth: 490 mm, Height: 89 mm
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional . Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
| Cable length | 2.44 m |
|---|---|
| Form factor | Rackmount/Tower |
| Maximum current | 12 A |
| USB 2.0 ports quantity | 1 |
| Package weight | 30 kg |
| Weight | 24.8 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 645 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 40 dB |
| Certification | cUL Listed, TAA compliance, UL 1778 |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Depth | 490 mm |
| Height | 89 mm |
| Width | 432 mm |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power protection features | Short circuit |
| Automatic battery test | Yes |
| Output operation voltage (max) | 120 V |
| Input operation voltage (max) | 154 V |
| Input operation voltage (min) | 75 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of batteries supported | 1 |
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Output frequency | 50/60 Hz |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery life (max) | 5 year(s) |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Rack capacity | 2U |
| USB port type | USB Type-B |
| Input frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR, RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
