750 VA, 600W, 302V, 50/60Hz, 40dB, 432x490x89mm, 22kg,

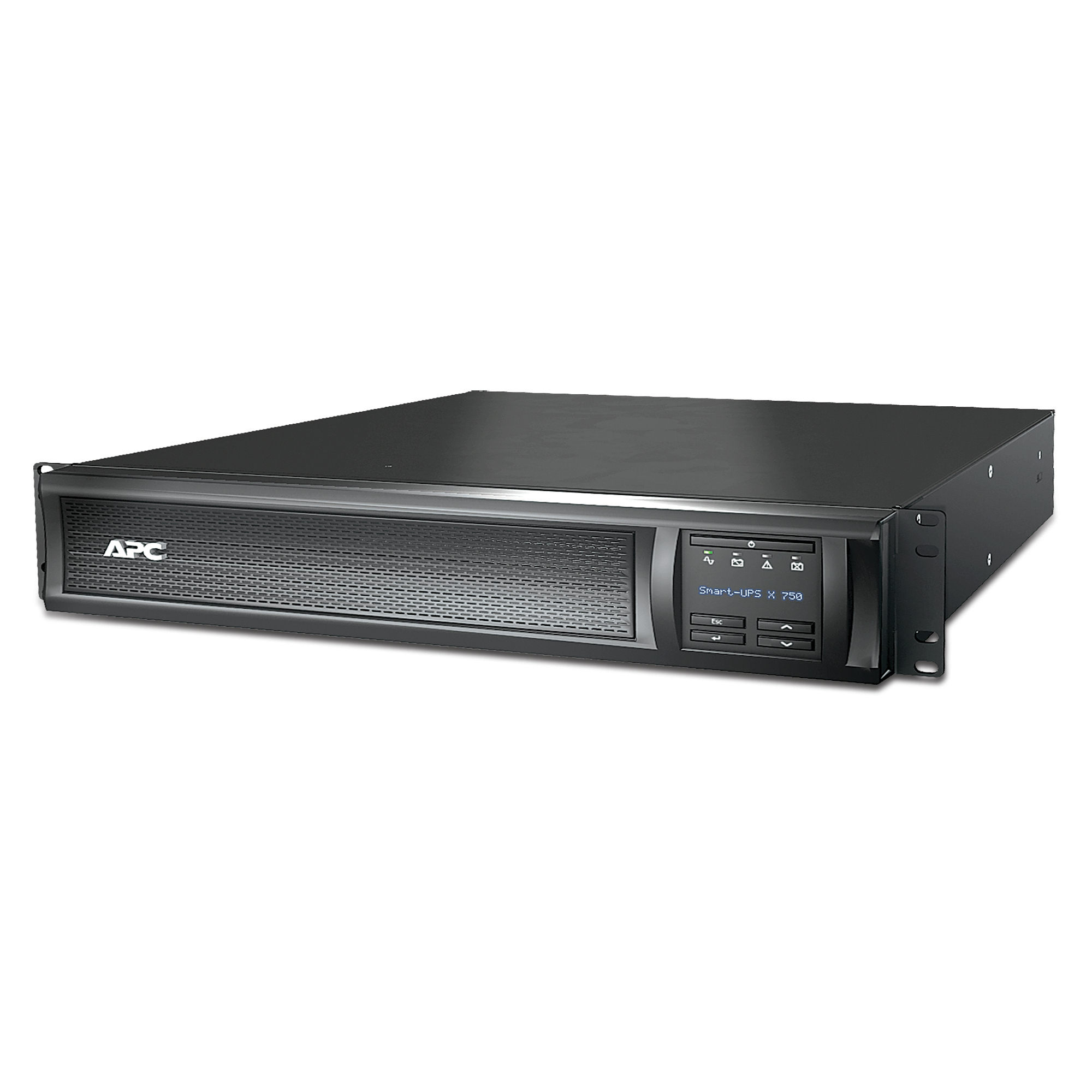

APC SMX750INC. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 600 W. AC outlet types: C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: , Rack capacity: 2U. Width: 432 mm, Depth: 490 mm, Height: 89 mm
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Preinstalled network management card
Provides for remote management and control of the UPS over a network out of the box.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Weight | 3 kg |
|---|---|
| Form factor | Rackmount/Tower |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Package weight | 26.4 kg |
| Weight | 22 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 645 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 40 dB |
| Products per pallet | 8 pc(s) |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Depth | 490 mm |
| Height | 89 mm |
| Width | 432 mm |
| Surge protection | Yes |
| Power plug | C14 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, IEC Jumpers |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Pure sine |
| Auto-restart | Yes |
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Cabling technology | 10/100Base-T |
| Rack capacity | 2U |
| Temperature voltage compensation | Yes |
| Input frequency | 50/60 Hz |
| Display type | LED |
| Harmonized System (HS) code | 85078000 |
