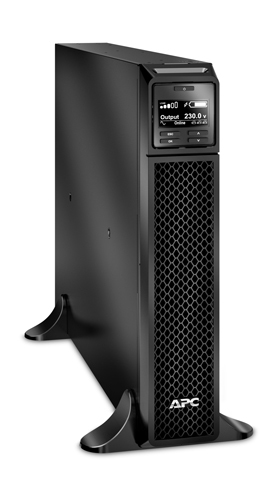

Smart-UPS, Double Conversion (Online), 2200VA, 1.98 KW, 230V, RJ-45 Serial, Smart-Slot, USB
APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: , Cable length: 2.44 m. Width: 85 mm, Depth: 584 mm, Height: 432 mm
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
| Weight | 3 kg |
|---|---|
| Cable length | 2.44 m |
| Typical backup time at full load | 3.9 min |
| Form factor | Rackmount/Tower |
| Typical backup time at half load | 11.6 min |
| Interface | SmartSlot |
| Package weight | 30.8 kg |
| Weight | 25 kg |
| Nominal output voltage | 230 V |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Number of output IEC jumpers | 2 |
| Nominal input voltage | 230 V |
| Surge energy rating | 340 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 55 dB |
| Products per pallet | 12 pc(s) |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Depth | 584 mm |
| Height | 432 mm |
| Width | 85 mm |
| Surge protection | Yes |
| Efficiency | 92.2% |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Crest factor | 3:1 |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Number of batteries supported | 1 |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| International Protection (IP) code | IP20 |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Bracket | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Warranty card | Yes |
| Packaging content | Power cord |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Battery capacity | 367 VAh |
| Input frequency | 40/70 Hz |
| Sustainability certificates | ENERGY STAR, Green Premium, RoHS |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
