1kVA, 900W, 50/60Hz, 6xNEMA 5-15R, 85x508x432mm, 22kg,

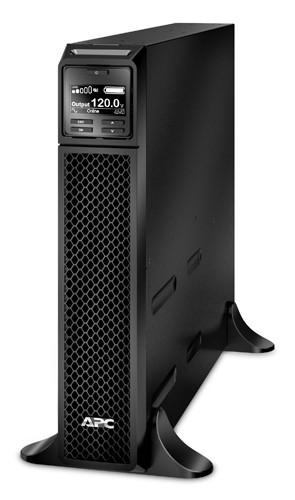

APC SRT1000XLA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Mini Tower, Product colour: , Cable length: 1.83 m. Width: 85 mm, Depth: 508 mm, Height: 432 mm
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional . Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
| Cable length | 1.83 m |
|---|---|
| Form factor | Mini Tower |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| USB 2.0 ports quantity | 1 |
| Package weight | 29.6 kg |
| Weight | 22 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Surge energy rating | 432 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 50 dB |
| Products per pallet | 12 pc(s) |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778 |
| LED indicators | Status |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Depth | 508 mm |
| Height | 432 mm |
| Width | 85 mm |
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Crest factor | 3:1 |
| Cold start | Yes |
| Output operation voltage (max) | 120 V |
| Input operation voltage (max) | 150 V |
| Input operation voltage (min) | 50 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Package width | 594 mm |
| Package depth | 749 mm |
| Package height | 246 mm |
| International Protection (IP) code | IP20 |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Resource CD | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Input frequency | 40 – 70 Hz |
| Sustainability certificates | ENERGY STAR |
| Display type | LCD |
