SRV 2000VA, 230 Vac, 40 – 70 Hz, 2000 VA / 1600 W, 220 Vac, 240 Vac, 88% max, 48 V
APC SRV3KI. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: C13 coupler, Power plug: C19 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 9 Ah, Battery capacity: 48 VAh, Battery voltage: 12 V. Form factor: Mini Tower, Product colour: , Display type: LCD. Width: 190 mm, Depth: 425 mm, Height: 336 mm

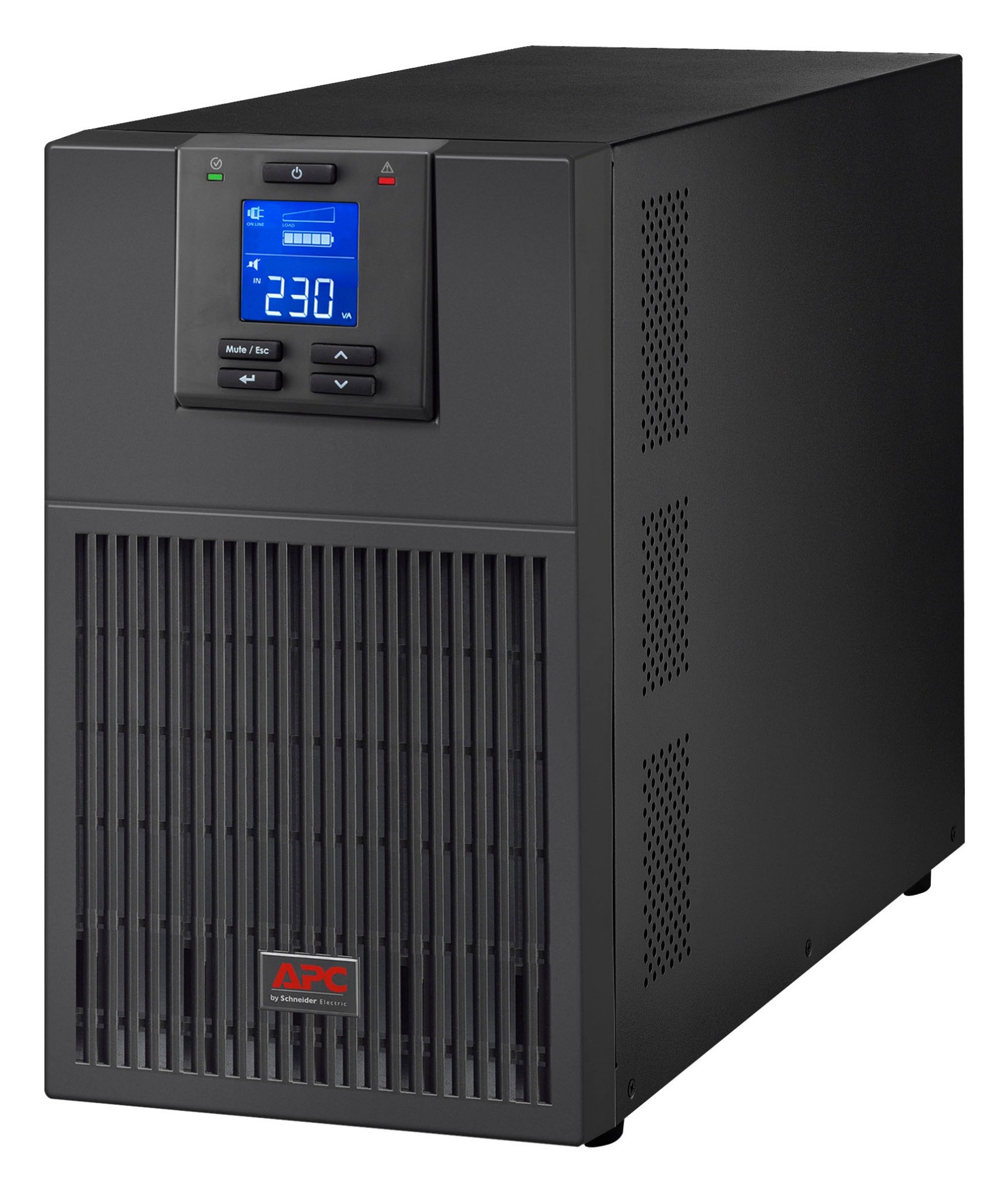

APC Easy UPS SRV 3000VA 230V
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS load or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
| Weight | 3 kg |
|---|---|
| Form factor | Mini Tower |
| USB 2.0 ports quantity | 1 |
| Package weight | 29 kg |
| Weight | 26.8 kg |
| Emergency Power Off (EPO) | No |
| Battery recharge time | 4 h |
| Surge energy rating | 600 J |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Non-operating altitude | 0 – 15000 m |
| Depth | 425 mm |
| Height | 336 mm |
| Width | 190 mm |
| Efficiency | 88% |
| Power plug | C19 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Crest factor | 3:1 |
| RS-232 ports | 1 |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 285 V |
| Input operation voltage (min) | 110 V |
| Battery voltage | 12 V |
| Number of batteries supported | 1 |
| Package width | 325 mm |
| Package depth | 565 mm |
| Package height | 465 mm |
| Cables included | Input power cable, Output power cable, RS-232, USB cable |
| Manual | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RS-232 |
| Warranty card | Yes |
| Software CD | Yes |
| Battery capacity | 48 VAh |
| Socket circuit breaker | Yes |
| Input frequency | 40 – 70 Hz |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
