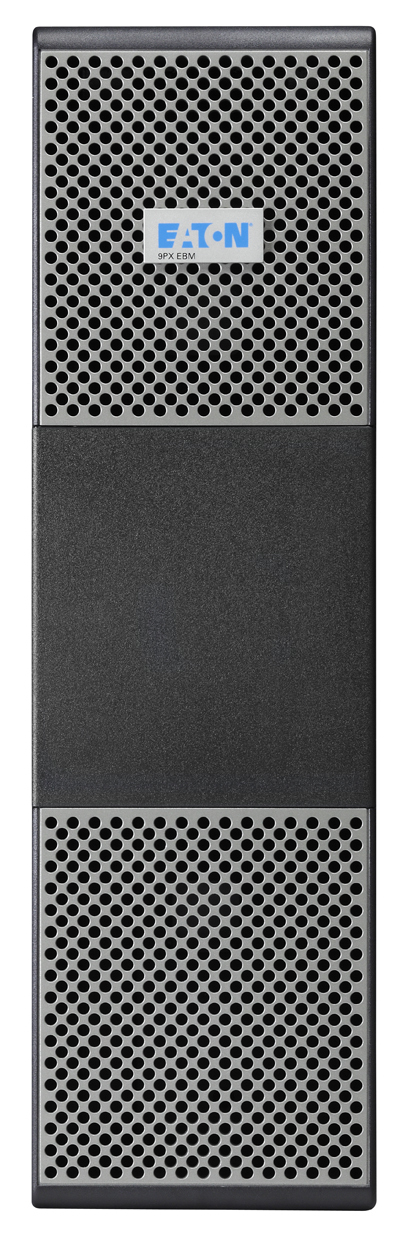

9PX 8kVA 3:1, Power Module
Eaton 9PX8KIPM31. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 7200 W. AC outlet types: Terminal, Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Form factor: Rackmount/Tower, Product colour: , Rack capacity: 6U. Width: 440 mm, Depth: 700 mm, Height: 260 mm. Bundled software: Intelligent Power Software suite
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
– Online double conversion topology
– Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
– Next-generation graphical LCD display (7 languages)
– Provides more real power (watts) to protect more equipment with a 0.9 power factor
– Parallel operation using HotSync technology (available in Q2 2013)
– Maintenance ByPass available as standard (on HotSwap/BP version)
– Energy metering – kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
– Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
| Weight | 28333.3333 kg |
|---|---|
| Form factor | Rackmount/Tower |
| Product Condition | New Retail |
| USB 2.0 ports quantity | 1 |
| Package weight | 27.5 kg |
| Weight | 23 kg |
| Nominal output voltage | 230 V |
| Nominal input voltage | 400 V |
| Hot-swap battery | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Noise level | 48 dB |
| Certification | IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Safety | IEC/EN 62040-1 |
| LED indicators | Yes |
| Bundled software | Intelligent Power Software suite |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Power factor | 0.9 |
| Input current Total Harmonic Distortion (THD) | 5% |
| Depth | 700 mm |
| Height | 260 mm |
| Width | 440 mm |
| Efficiency | 0.95% |
| Power plug | Terminal |
| AC outlets quantity | 1 AC outlet(s) |
| AC outlet types | Terminal |
| RS-232 ports | 1 |
| Automatic battery test | Yes |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 480 V |
| Input operation voltage (min) | 305 V |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Waveform | Pure sine |
| Output frequency | 50/60 Hz |
| USB port | Yes |
| Rack capacity | 6U |
| Management card included | No |
| Input frequency | 40/70 Hz |
| Sustainability certificates | ENERGY STAR |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
