Intel Xeon Gold 5318Y (36MB Cache, 2.1GHz), 32GB DDR4-SDRAM, 480GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 15G, 2 x 1400W, No OS

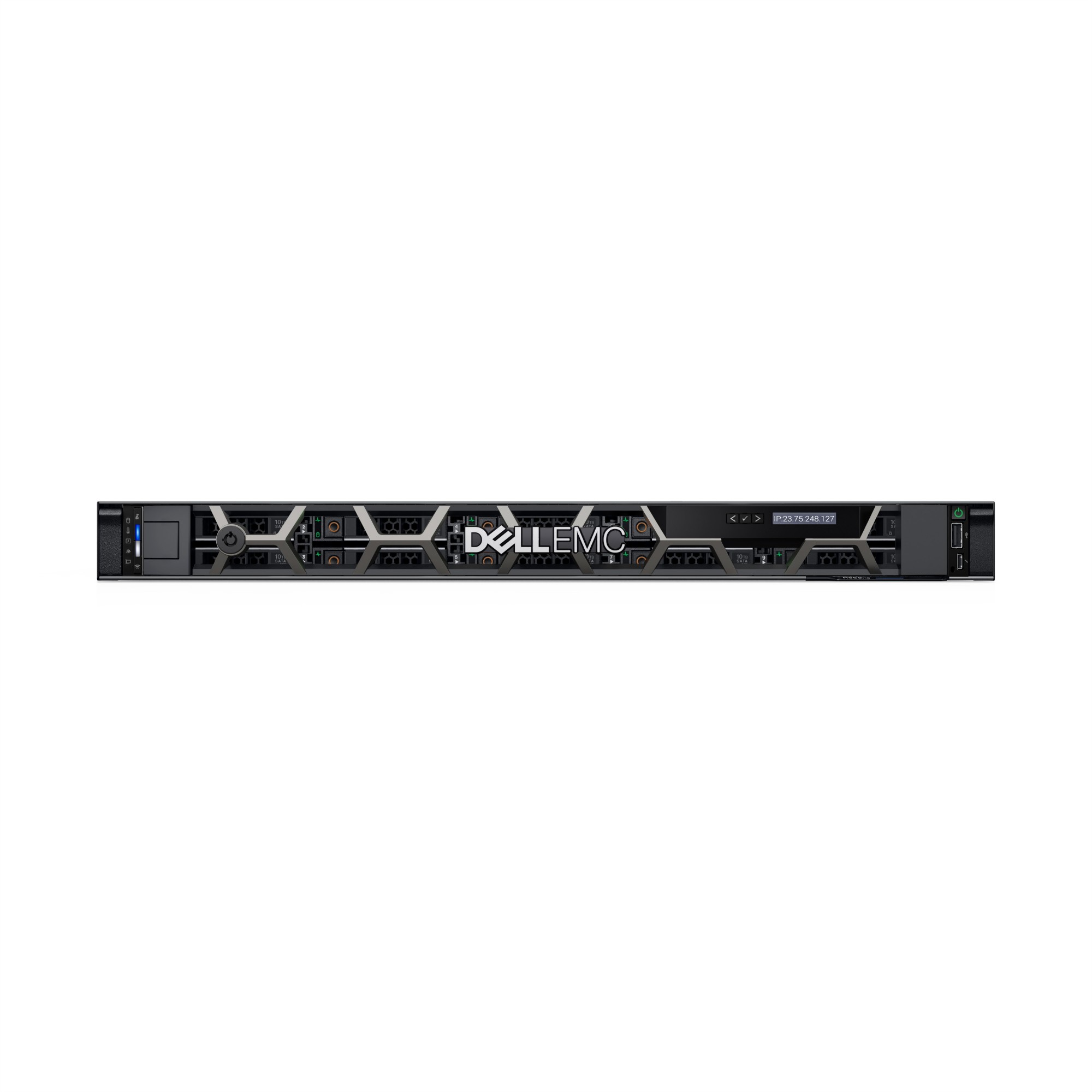

DELL PowerEdge R650xs. Processor family: Intel® Xeon® Gold, Processor frequency: 2.1 GHz, Processor model: 5318Y. Internal memory: 32 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. LAN, Cabling technology: Base-T(X). Power supply: 1400 W, Redundant power supply (RPS) support. Chassis type: Rack
server that’s purpose-built for scale-out solutions
The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.
| Weight | 3 kg |
|---|---|
| Hot-Plug support | Yes |
| Product Condition | New Retail |
| Drive bays | 8 |
| Processor manufacturer | Intel |
| Processor model | 5318Y |
| Number of processors installed | 1 |
| Bytes per sector | 512 |
| Total storage capacity | 480 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 1000 GB |
| Optical drive type | No |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Height | 42.8 mm |
| Width | 482 mm |
| Power supply | 1400 W |
| Non-operating altitude | 0 – 12000 m |
| Operating altitude | 0 – 3048 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 8 – 80% |
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating system installed | No |
| Compatible operating systems | Canonical® Ubuntu® Server LTS |
| Remote administration | iDRAC9, Enterprise 15G |
| PCI Express x16 slots | 2 |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| RAID support | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Rack rails | Yes |
| Number of SSDs installed | 1 |
| SSD interface | SATA |
| SSD capacity | 480 GB |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.1 GHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Number of SSDs supported | 8 |
| Maximum internal memory supported by processor | 512 GB |
| Processor cache | 36 MB |
| Thermal Design Power (TDP) | 165 W |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Supported RAID controllers | PERC H755 |
| Product colour | Black |
| Memory data transfer rate | 3200 MT/s |
| Memory ranking | 2 |
| Buffered memory type | Registered (buffered) |
| SSD size | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Bezel | Yes |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
| Supported SSD sizes | 2.5" |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
