Intel Xeon Silver 4210R (2.4GHz, 13.75MB), 16GB (1 x 16GB) DDR4, 8 SFF HDD, Smart Array P408i-a/2GB SR Gen10, 1x 500W PS

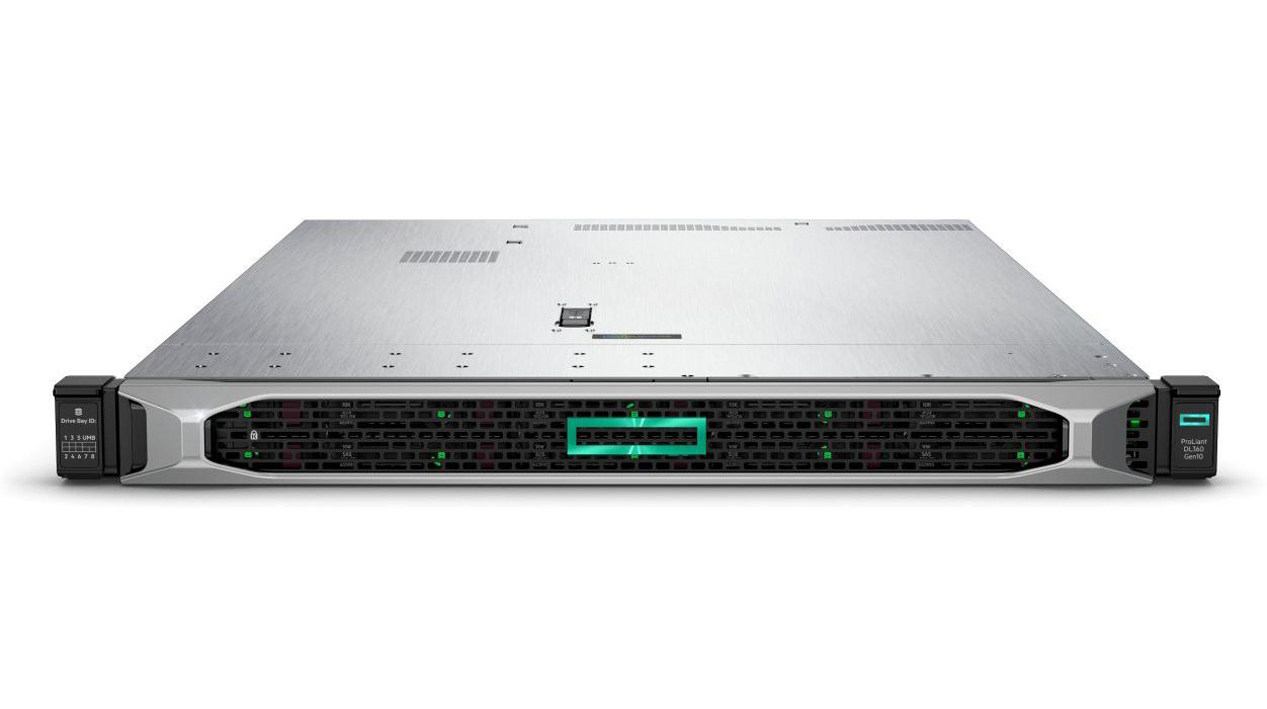

HPE ProLiant D60 Gen10. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4210R. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 16 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). LAN. Power supply: 500 W, Redundant power supply (RPS) support. Chassis type: Rack
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing?
The HPE ProLiant D60 Gen10 Server delivers security, agility and flexibility without compromise. Supports the Intel® Xeon® Processor Scalable Family with up to a 71% performance gain and 27% increase in cores, plus 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB4 with an increase in performance up to 66%. With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant D60 Gen10 means business. Deploy, update, monitor and maintain with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.
Features
Industry-leading Performance with Versatile Compute
– The HPE ProLiant D60 Gen10 Server supports industry standard technology leveraging Intel’s latest Xeon® Processor Scalable Family with up to 28 cores, 12G SAS and 3.0 TB4 of HPE DDR4 2666 MT/s SmartMemory.
– With support for up to 12 NVDIMMs per chassis and 2X capacity of first generation HPE NVDIMMs, the HPE ProLiant D60 Gen10 Server delivers up to 192 GB per system.
– Achieve greater capacity with flexible drive configuration options with up to ten SFF, four LFF drives along with option to support up to ten NVMe PCIe SSDs delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
– HPE Persistent Memory, the world’s first non-volatile DIMM (NVDIMM) optimized on HPE ProLiant compute, offers unprecedented levels of performance for databases and analytic workloads.
Innovative Design for Flexibility and Choice
– The Premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8+2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
– Embedded 4x1GbE plus HPE FlexibleLOM or PCIe standup 1GbE, 10GbE or 25GbE adapters which provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
– Unmatched expandability packed in a dense rack design with up to 3 PCIe 3.0 slots.
Security Innovations
– Only HPE offers industry standard servers with major firmware anchored directly into the silicon. with security protection built in across the server lifecycle starting with Silicon Root of Trust.
– Millions of lines of firmware code run before the server operating system boots and with Runtime Firmware Validation, enabled by iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
– Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
– Additional security options are available with Trusted Platform Module (TPM) to prevents unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Industry-Leading Serviceability and Deployment
– The HPE ProLiant D60 Gen10 Server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability.
– HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
– Services provided under Operational Services include: Flexible Capacity, Datacenter Care, Infrastructure Automation, Campus Care, Proactive Services and Multi-vendor coverage.
– HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
| Weight | 16830 kg |
|---|---|
| Hot-Plug support | Yes |
| Product Condition | New Retail |
| Processor manufacturer | Intel |
| Processor model | 4210R |
| pa_built-in-camera | 10 |
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Maximum storage capacity | 26.4 TB |
| Number of hard drives supported | 8 |
| ECC | Yes |
| Memory slots | 24x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 1536 GB |
| pa_i_opticaldrivetype_1120_1 | No |
| VGA (D-Sub) ports quantity | 1 |
| pa_i_ethernetlanrj4_2312_1 | 4 |
| Depth | 707 mm |
| Height | 42.9 mm |
| Width | 434.6 mm |
| Power supply | 500 W |
| Maximum graphics adapter memory | 16 MB |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter |
| Remote administration | iLO 5 ASIC |
| Processor socket | LGA 3647 (Socket P) |
| Ethernet LAN | Yes |
| RAID support | Yes |
| PCI Express slots version | 3.0 |
| Motherboard chipset | Intel® C621 |
| Ethernet interface type | Gigabit Ethernet |
| On-board graphics card | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Supported HDD sizes | 2.5" |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.4 GHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Enhanced Intel SpeedStep Technology | Yes |
| Processor threads | 20 |
| Tcase | 84 °C |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Processor package size | 76.0 x 56.5 mm |
| Memory clock speeds supported by processor | 2400 MHz |
| Execute Disable Bit | Yes |
| Processor operating modes | 64-bit |
| Embedded options available | Yes |
| Processor lithography | 14 nm |
| Maximum internal memory supported by processor | 1024 GB |
| Processor cache | 13.75 MB |
| Scalability | 2S |
| Thermal Design Power (TDP) | 100 W |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Maximum number of PCI Express lanes | 48 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Processor ARK ID | 197098 |
| Harmonized System (HS) code | 84714100 |
| Sustainability certificates | ENERGY STAR |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
