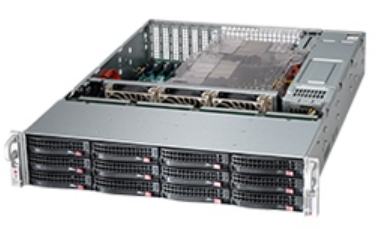

2U, 12x 3.5″ hot-swap SAS/SATA, 7x LP, 1200W
Supermicro SC826BE1C4-R1K23LPB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 1200 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Supported HDD sizes: 3.5″. Width: 437 mm, Depth: 647 mm, Height: 89 mm. Package width: 678 mm, Package depth: 876 mm, Package height: 290 mm
Supermicro’s SC826 chassis maximizes the storage capacity of a 2U form factor by offering 12 hot-swap hard drive bays for extra storage. The chassis design optimizes every aspect of interior space without compromising superior cooling. It is also equipped with a redundant 740W, 920W and 1280W Platinum Level(95%) high efficiency power supply for superb power savings. 1200W chassis models come with palletized package designed to protect system during the shipping. SC826 with SAS3 support is the ideal storage chassis for limited rack space constrain.
| Form factor | Rack |
|---|---|
| pa_built-in-camera | Yes |
| Audio input | No |
| Audio output | No |
| Depth | 647 mm |
| Height | 89 mm |
| Width | 437 mm |
| Power supply | 1200 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 5 – 35 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Package width | 678 mm |
| Package depth | 876 mm |
| Package weight | 24.9 kg |
| Package height | 290 mm |
| LED indicators | Fan fail, HDD, LAN, Power |
| Supported HDD sizes | 3.5" |
| Side window | No |
| Number of expansion slots | 7 |
| Reset button | Yes |
| Backplanes support | Yes |
| Number of power supply units | 1 |
| Power supply dimensions (WxDxH) | 76 x 360 x 40 mm |
| On/off button | Yes |
| 80 PLUS certification | 80 PLUS Titanium |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Rack capacity | 2U |
| Harmonized System (HS) code | 84733080 |
