Intel Xeon E5-2600 v3, 16x DIMM, 10x Hot-swap 2.5″ SAS/SATA HDD, Intel X540, 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front), 700W/750W

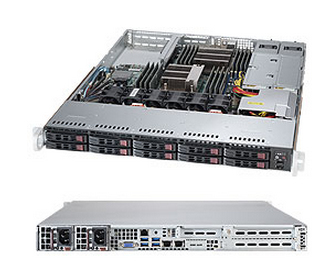

Supermicro SuperServer 1028R-WTRT. Processor socket: LGA 2011-v3, Processor family: Intel, System bus rate: 9.6 GT/s. Supported memory types: DDR4-SDRAM, Maximum internal memory: 1000 GB, Maximum RDIMM memory: 32 GB. Storage drive sizes supported: 2.5″, Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 100,1000,10000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10GBASE-T
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM sockets
3. 2x PCI-E 3.0 x16 (FHHL), 1x PCI-E 3.0 x8 Mezzanine for HBA cards
4. 10x Hot-swap 2.5″ SAS/SATA HDD bays
5. Intel® X540 Dual port 10GBase-T
6. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front)
7. 2x SuperDOM (Disk on Module) ports
8. 700W Redundant Power Supplies Platinum Level High-efficiency
| BIOS memory size | 128 Mbit |
|---|---|
| Processor family | Intel |
| Processor socket | LGA 2011-v3 |
| Hot-swap hard drive bays | Yes |
| ECC | Yes |
| Maximum internal memory | 1000 GB |
| Number of DIMM slots | 16 |
| pa_i_ethernetlanrj4_2312_1 | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Depth | 597 mm |
| Height | 43 mm |
| Weight | 20.1 kg |
| Width | 437 mm |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| LAN controller | Intel® X540, Realtek RTL8211E |
| Product colour | Black |
| RAID levels | 0, 1, 5, 10 |
| PCI Express x16 slots | 2 |
| Memory voltage | 1.2 V |
| System bus rate | 9.6 GT/s |
| Intel Xeon series | E5-2600 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 32 GB |
| IPMI LAN (RJ-45) port | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10GBASE-T |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Chassis type | Rack (1U) |
| Ethernet LAN | Yes |
| On-board graphics card model | Aspeed AST2400 |
| Fan diameter | 4 cm |
| Number of fans | 5 fan(s) |
| Maximum cache | 45 MB |
| BIOS features | APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI |
| Number of storage drives supported | 10 |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA |
| Storage drive sizes supported | 2.5" |
| Harmonized System (HS) code | 84714100 |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Sustainability certificates | RoHS |
