Dual socket R3, LGA 2011, Intel Xeon E5-2600 v3, Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 2133MHz, 16x DIMM, Intel i350-AM2 Dual port GbE LAN, Black

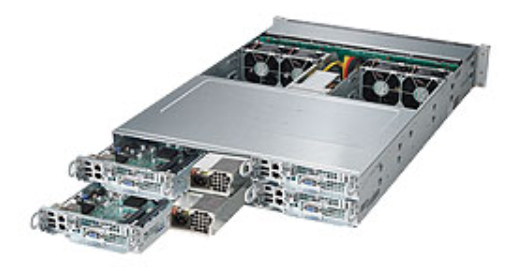

Supermicro SuperServer 2028TP-HC1FR. Motherboard chipset: Intel® C612, Processor socket: LGA 2011 (Socket R), Processor family: Intel Xeon E5 v3. Supported memory types: DDR4-SDRAM, Maximum internal memory: 1000 GB, Maximum RDIMM memory: 32 GB. Storage drive sizes supported: 2.5″, RAID levels: 0, 1, 5, 6, 10, 50. On-board graphics card model: Aspeed AST2400. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
SuperServers are Your Best Choice!
SuperServer Benefits:
– Uncompromising Quality Control
– Most Comprehensive Line of Rackmount/Tower Servers
– Best Selection of High-End Servers – Itanium, Xeon & P4
– Redundant Components (virtually eliminating system downtime)
– Best Price/Performance Ratio
– Superior Product Design (all under one roof)
– Consistently First-to-Market
– Maximized Performance
– Reduced Total Cost of Ownership (TCO)
– Top-Notch Finishing Materials
– 3-Year Limited Warranty
– 24-Hour Server Support
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end PC/server industry. After all, Supermicro provides the most outstanding product line in the industry, ranging from single Pentium 4 and dual Xeon to quad Xeon MP and dual Itanium systems. Their proven high level of quality and performance has made SuperServers the platform of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | AMI |
| Compatible processor series | Intel® Xeon® |
| Processor family | Intel Xeon E5 v3 |
| Processor socket | LGA 2011 (Socket R) |
| Hot-swap hard drive bays | Yes |
| ECC | Yes |
| Maximum internal memory | 1000 GB |
| Number of DIMM slots | 16 |
| Ethernet LAN (RJ-45) ports | 3 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 38.6 kg |
| Width | 438 mm |
| Power supply | 2000 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -10 – 35 °C |
| Operating relative humidity (H-H) | 8 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| LAN controller | Intel® I350-AM2 |
| Product colour | Black |
| RAID levels | 0, 1, 5, 6, 10, 50 |
| LED indicators | Yes |
| PCI Express x16 slots | 1 |
| Memory voltage | 1.2 V |
| Number of processors supported | 2 |
| System bus rate | 9.6 GT/s |
| Intel Xeon series | E5-2600 |
| Motherboard chipset | Intel® C612 |
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 32 GB |
| IPMI LAN (RJ-45) port | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Chassis type | Rack (2U) |
| Ethernet LAN | Yes |
| On-board graphics card model | Aspeed AST2400 |
| On/off switch | Yes |
| BIOS features | APM 1.2, PCI 2.2, SMBIOS 2.3, UEFI |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of storage drives supported | 6 |
| ACPI version | 2.0 |
| Storage drive sizes supported | 2.5" |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Number of SAS ports | 6 |
