3rd Gen Intel Xeon Scalable processors, 8 DIMMs, Intel Ethernet Controller X550 2x 10GbE RJ45, 4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2, Redundant Platinum 500W Power Supply

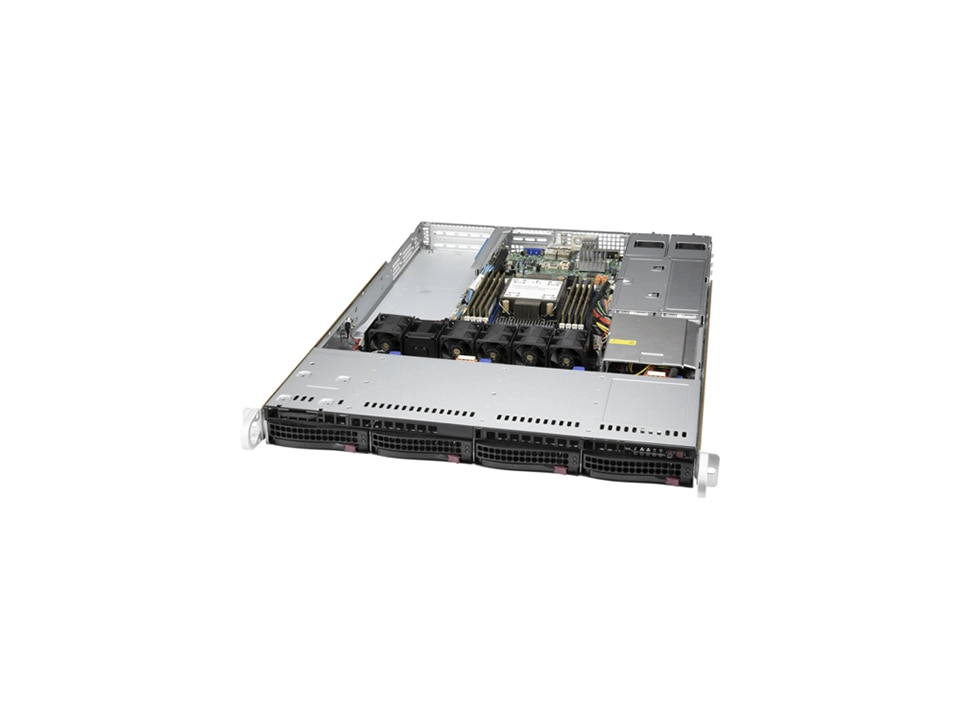

Supermicro SYS-510P-WTR. Processor family: Intel® Xeon® 3000 Sequence. Internal memory type: DDR4-SDRAM. Ethernet LAN. Power supply: 500 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)
| pa_built-in-camera | Yes |
|---|---|
| Processor manufacturer | Intel |
| ECC | Yes |
| Memory slots | 8 |
| Memory clock speed | 3200 MHz |
| Maximum internal memory | 3000 GB |
| Optical drive type | No |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| pa_i_ethernetlanrj4_2312_1 | 3 |
| Serial ports quantity | 2 |
| Depth | 650 mm |
| Height | 43 mm |
| Weight | 10.9 kg |
| Width | 437 mm |
| Power supply | 500 W |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 8 – 90% |
| Operating temperature (T-T) | 10 – 35 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| RAID levels | 0, 1, 5, 10 |
| Package weight | 21.8 kg |
| Certification | 80 PLUS Platinum Level |
| Operating system installed | No |
| PCI Express x16 slots | 3 |
| LAN controller | Intel® X550 |
| Ethernet LAN | Yes |
| RAID support | Yes |
| Motherboard chipset | Intel® C621 |
| Wi-Fi | No |
| Ethernet interface type | 10 Gigabit Ethernet |
| BIOS type | EEPROM |
| On-board graphics card | Yes |
| Trusted Platform Module (TPM) | No |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| SSD interface | NVMe, SATA III |
| Package width | 596.9 mm |
| Package height | 215.9 mm |
| Package depth | 856 mm |
| Hot-swap | Yes |
| Number of SSDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Product colour | Black |
| Harmonized System (HS) code | 84714100 |
| SSD size | 3.5" |
| Supported SSD sizes | 3.5" |
| NVMe | Yes |
