12 x 3.5″/2.5″, 2 x SAS in, 2 x SAS out, 500 W, 88 x 482 x 724 mm, 18.2 kg
Synology RXD1219sas. Device class: Small & Medium Business. Number of storage drives supported: 12, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: SAS, SAS-2, SAS-3, Storage drive sizes supported: 2.5,3.5″. Width: 482 mm, Depth: 724 mm, Height: 88 mm, Weight: 18.2 kg. Product colour: ,
On-the-fly SAS expansion up to 12 additional bays

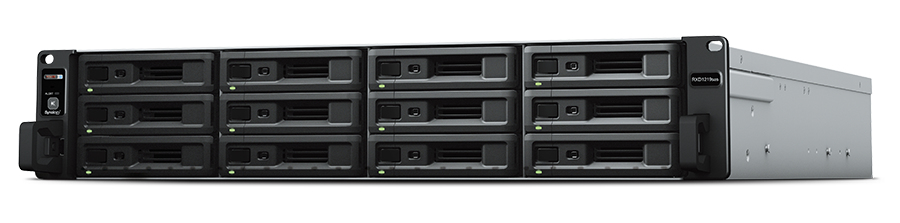

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers1. You can add up to 12 additional 2.5″ / 3.5″ SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
Designed for maximum reliability
The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
High-performance data transmission
The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.
| Power consumption (typical) | 299.79 W |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Certification | FCC |
| Operating temperature (T-T) | 0 – 35 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -20 – 60 °C |
| Weight | 18.2 kg |
| Height | 88 mm |
| Depth | 724 mm |
| Width | 482 mm |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Number of power supply units | 1 |
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Noise level | 60.9 dB |
| Cables included | AC |
| Device class | Small & Medium Business |
| Power supply unit (PSU) capacity | 500 W |
| Hot-swap drive bays | Yes |
| SAS host port | Yes |
| Number of SAS host ports | 4 |
| Supported storage drive interfaces | SAS, SAS-2, SAS-3 |
| Storage drive sizes supported | 2.5,3.5" |
| Fan diameter | 6 cm |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84717020 |
