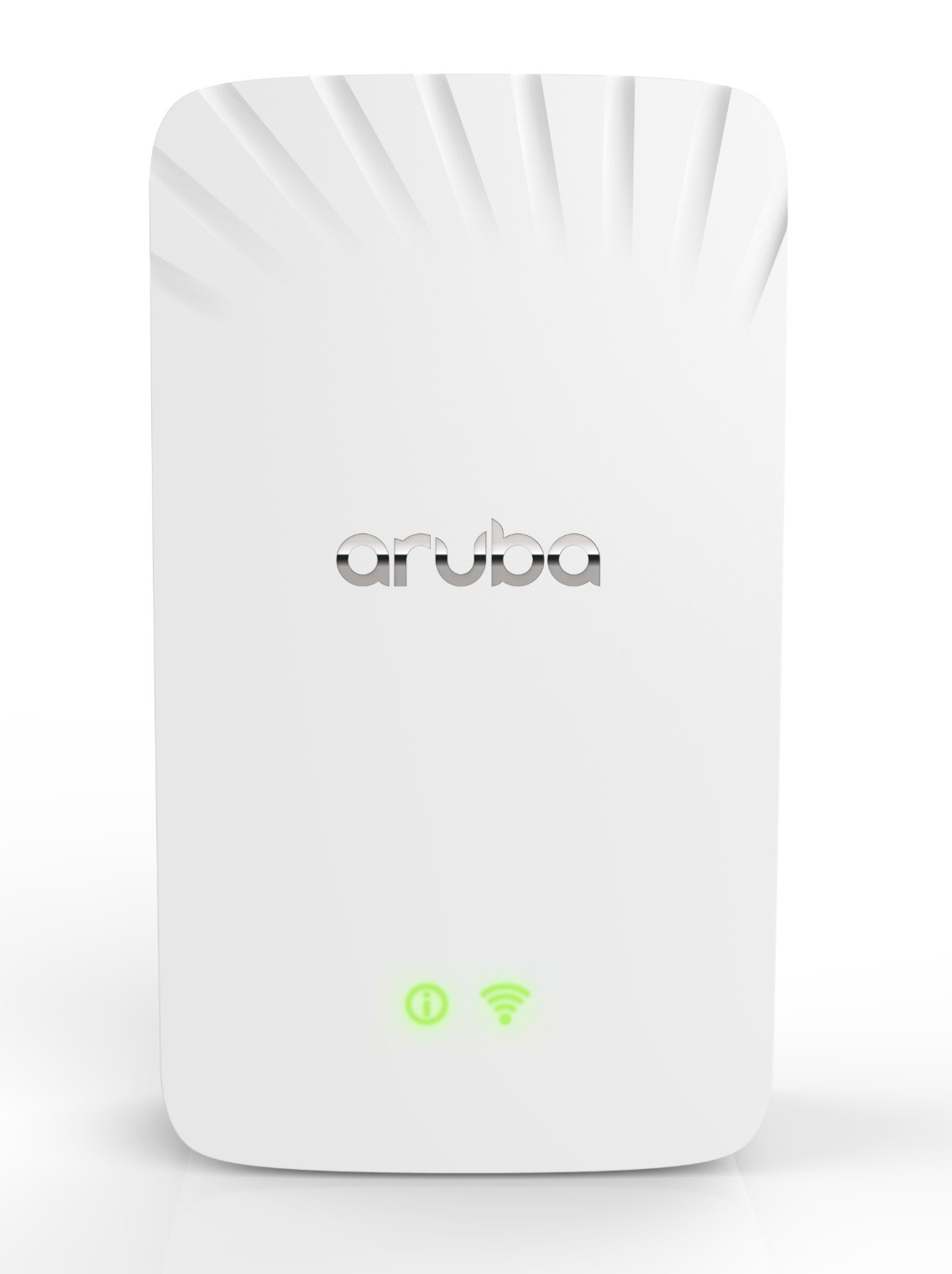

Aruba AP-505H (RW) Dual-radio 802.11ax 2×2 Unified Hospitality AP with 1+4 , PSE, USB
HPE Aruba AP-505H (RW). Maximum data transfer rate: 1487 Mbit/s, Maximum data transfer rate (2.4 GHz): 287 Mbit/s, Maximum data transfer rate (5 GHz): 1200 Mbit/s. Security algorithms: WPA, WPA2, WPA3. USB connector type: USB Type-A. Power consumption (max): 50 W. Placement: Table, Wall, Product colour:
The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
| Weight | 3 kg |
|---|---|
| USB 2.0 ports quantity | 1 |
| Product Condition | New Retail |
| Ethernet LAN (RJ-45) ports | 4 |
| Weight | 360 g |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 – 93% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Security algorithms | WPA, WPA2, WPA3 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Antenna gain level (max) | 5.4 dBi |
| Antenna type | Internal |
| Height | 150 mm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Antennas quantity | 2 |
| USB connector type | USB Type-A |
| Depth | 47 mm |
| Width | 86 mm |
| Product colour | White |
| Power consumption (max) | 50 W |
| Placement | Table, Wall |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Antenna direction type | Semi-directional |
| Antenna design | Integrated antenna |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Harmonized System (HS) code | 85176990 |
