4+ km, multi-gigabit, 60 GHz bridge with SFP+ support
Ubiquiti Networks UISP airFiber 60 XG. Maximum data transfer rate: 6000 Mbit/s, Maximum transfer distance: 4000 m. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Connectivity technology: Wired. Security algorithms: WPA2-PSK. Product type: Network bridge, Material: Polycarbonate (PC), Steel, Mounting type: Pole

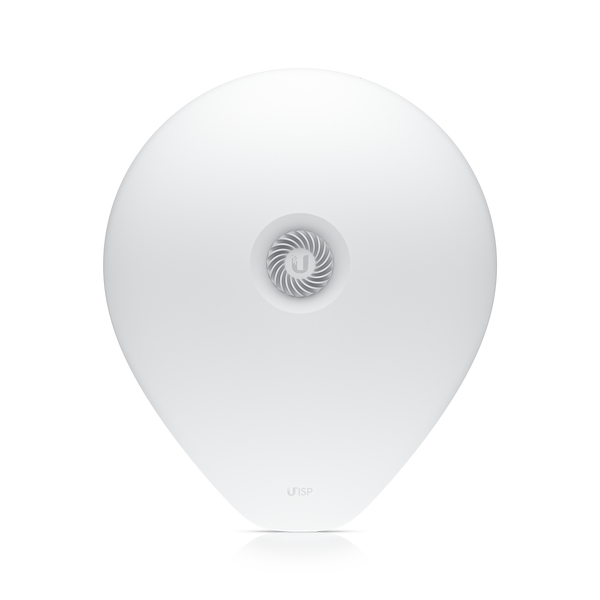

The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
| Connectivity technology | Wired |
|---|---|
| Weight | 8.6 kg |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 – 55 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Security algorithms | WPA2-PSK |
| Certification | FCC, IC, CE, terragraph |
| Power LED | Yes |
| LED indicators | LAN, Power |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| Web-based management | Yes |
| pa_built-in-camera | Polycarbonate (PC), Steel |
| Product colour | White |
| Manual | Yes |
| Ethernet LAN | Yes |
| Power consumption (max) | 31.2 W |
| Ethernet LAN data rates | 1000 Mbit/s |
| Reset button | Yes |
| Processor frequency | 1600 MHz |
| RAM capacity | 2048 MB |
| RAM type | DDR4 |
| Network Time Protocol (NTP) client | Yes |
| Power source type | PoE |
| Quantity per pack | 1 pc(s) |
| Width | 383 mm |
| Depth | 664 mm |
| Height | 779 mm |
| Power over Ethernet (PoE) voltage | 48 V |
| Ethernet LAN interface type | Gigabit Ethernet |
| Maximum transfer distance | 4000 m |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Mounting type | Pole |
