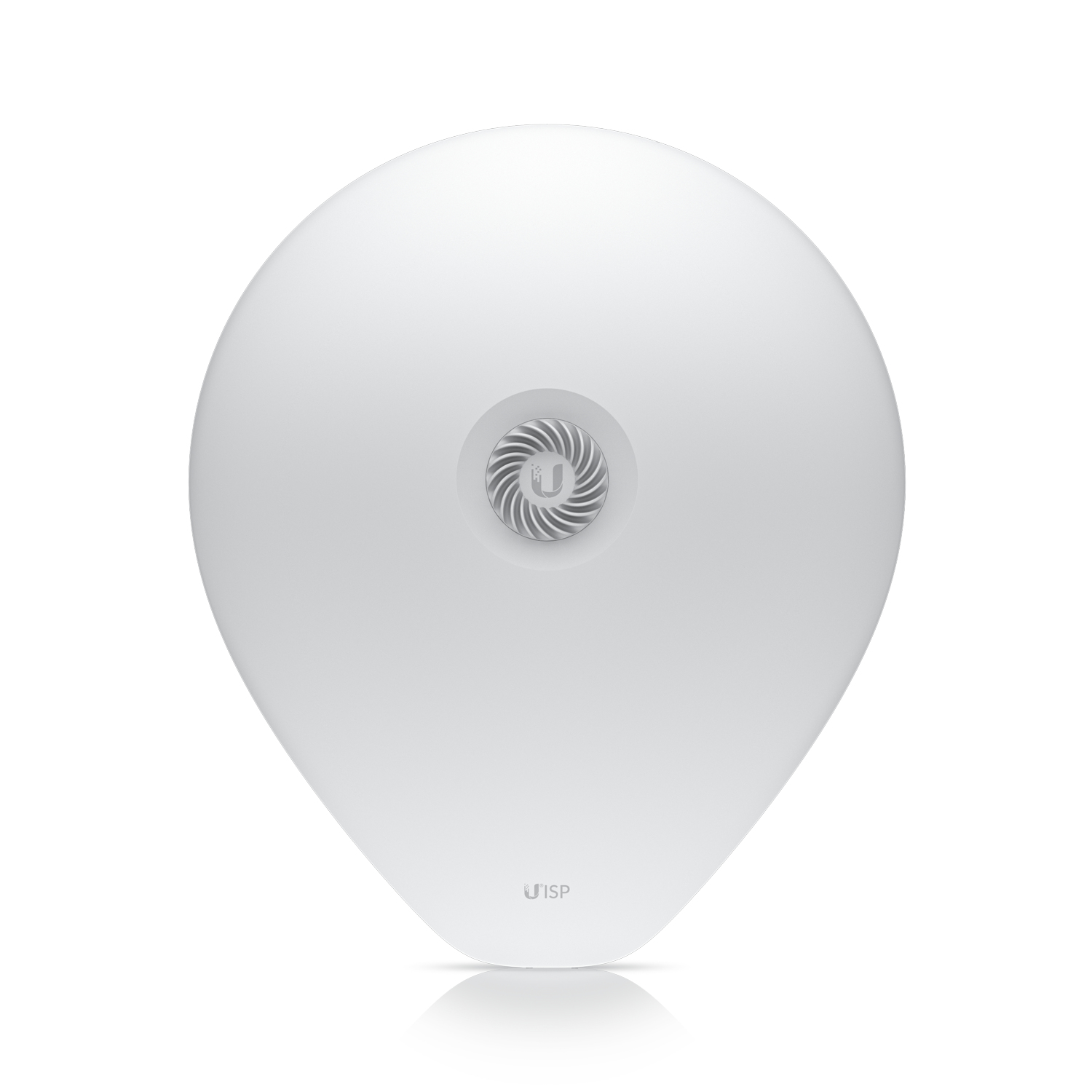

UISP airFiber 60 XR, 422 N at 200 km/h (94.86 lbf at 125 mph), IPX6
Ubiquiti Networks UISP airFiber 60 XR. Maximum transfer distance: 4000 m. Antenna design: External, Antenna gain level (max): 26 dBi. Modulation: 16-QAM, BPSK, QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Connectivity technology: Wired
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
It’s also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
– 5 GHz backup radio
– Link range: 15+ km
– (1) 10G SFP+ port
– Integrated GPS
– Link planning support via the ISP Design Center
| Compatible operating systems | Any modern web browser/iOS™ or Android™ based smartphone |
|---|---|
| Connectivity technology | Wired |
| Weight | 8.6 kg |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 – 55 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Security algorithms | WPA2-PSK |
| Certification | FCC, IC, CE |
| Power LED | Yes |
| Antenna gain level (max) | 26 dBi |
| Modulation | 16-QAM, BPSK, QPSK |
| LED indicators | LAN, Power |
| pa_i_ethernetlanrj4_2312_1 | 1 |
| Web-based management | Yes |
| pa_built-in-camera | Polycarbonate (PC), Steel |
| Product colour | White |
| Manual | Yes |
| Ethernet LAN | Yes |
| Power consumption (max) | 24 W |
| Ethernet LAN data rates | 1000 Mbit/s |
| Reset button | Yes |
| Processor frequency | 1400 MHz |
| RAM capacity | 1024 MB |
| RAM type | DDR3 |
| International Protection (IP) code | IPX6 |
| Network Time Protocol (NTP) client | Yes |
| Power source type | PoE |
| Quantity per pack | 1 pc(s) |
| Processor manufacturer | Qualcomm |
| Width | 779 mm |
| Depth | 664 mm |
| Height | 383 mm |
| Power over Ethernet (PoE) voltage | 48 V |
| Ethernet LAN interface type | Gigabit Ethernet |
| Maximum transfer distance | 4000 m |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Mounting type | Pole |
| Antenna design | External |
