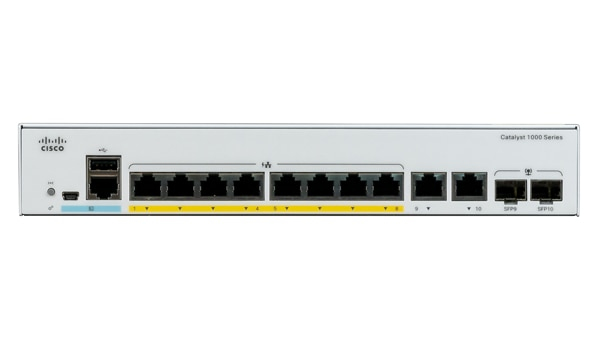

8x + ports, 120W budget, 2x 1G SFP and RJ-45 combo uplinks
Cisco Catalyst C1000-8FP-2G-L. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE….
Cisco Catalyst 1000 Series switches provide enterprise-grade network access sized for small businesses. With a wide range of and port combinations, these easy-to-manage switches provide the performance a modern small office needs.
Quiet and compact
The compact, fanless design means Catalyst 1000 switches can hide in plain sight in open-plan spaces.
Simplified management
Catalyst 1000 switches run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.
Enhanced security
With Catalyst 1000 switches’ larger-scale access-control tables and additional security features, you can segment traffic for greater security.
With a range of options featuring Perpetual , Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.
The Catalyst 1000 Series switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.
Intuitive software for monitoring your network
You can manage all your Cisco Catalyst IOS switches with Cisco Configuration Professional, a web-based application for monitoring and optimizing your devices and getting contextual support.
Why upgrade to Catalyst 1000 switches
Improved hardware
– Increased budget
More advanced software options
– sFlow and IPFIX
– IPv6 First-Hop Security
Expanded ACL support
– Larger-scale access-control tables
Accelerate your success with services from Cisco Customer Experience
Confidently move to a secure, automated intent-based network with expert guidance, proven experience, best practices, and innovative tools.
| Weight | 3 kg |
|---|---|
| Processor frequency | 800 MHz |
| Product Condition | New Retail |
| Memory type | DRAM |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Power consumption (typical) | 21.3 W |
| Input current | 0.22 – 0.27 A |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -5 – 50 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Non-operating altitude | 0 – 4500 m |
| Mean time between failures (MTBF) | 1706649 h |
| Management protocols | SNMP |
| Number of VLANs | 256 |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames support | Yes |
| Spanning tree protocol | Yes |
| IGMP snooping | Yes |
| Product colour | Grey |
| Switching capacity | 20 Gbit/s |
| Full duplex | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| LED indicators | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| MIB support | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 220 V |
| Depth | 184.9 mm |
| Height | 43.9 mm |
| Width | 268.2 mm |
| Combo SFP ports quantity | 2 |
| Number of static routes | 16 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power consumption (max) | 22 W |
| Auto-negotiation | Yes |
| Jumbo frames | 10240 |
| Authentication | Web-based authentication |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Power over Ethernet (PoE) power per port | 15 W |
| Static route | Yes |
| Authentication type | RADIUS |
| IGMP entries | 1024 |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Forwarding rate | 14.88 Mpps |
| Configuring Location Settings (CLI) | Yes |
| Processor model | ARM7 |
| Built-in processor | Yes |
| DHCP features | DHCP snooping |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) type supported | PoE+ |
