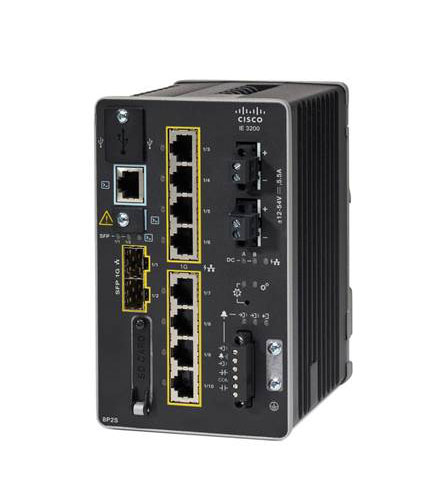

IE-3200-8P2S-E, 10x RJ-45, 2x SFP, 8x /+, SD, RS-232, USB Mini B, 152.4×91.44×134.62 mm
Cisco IE-3200-8P2S-E. Switch type: , Switch layer: . Basic switching RJ-45 ports type: , Basic switching RJ-45 ports quantity: 10, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1x, IEEE 802.3. DC input voltage: 9.6 – 60 V.
The Cisco Catalyst IE3200 Rugged Series delivers high-speed connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3200 Rugged Series can be with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.
The IE3200 Series provides an option for up to eight ports of Plus (+), with a product SKU that is ideal for connecting -powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
| Weight | 3 kg |
|---|---|
| Number of queues | 8 |
| Product Condition | New Retail |
| Electromagnetic compatibility | FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386 |
| Memory type | DRAM |
| Flash memory | 1500 MB |
| Internal memory | 2048 MB |
| Weight | 1.7 kg |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 35 W |
| Input current | 5.5 A |
| Operating temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Mean time between failures (MTBF) | 613125 h |
| Number of VLANs | 256 |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Product colour | Black |
| Security algorithms | SNMP, SNMPv3, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Certification | UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Multicast support | Yes |
| Web-based management | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| 10G support | No |
| Networking standards | IEEE 802.1x, IEEE 802.3 |
| Console port | RJ-45 |
| VLAN support | Yes |
| Depth | 134.6 mm |
| Height | 152.4 mm |
| Width | 91.4 mm |
| Compatible memory cards | SD |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| International Protection (IP) code | IP30 |
| Access Control List (ACL) rules | 1500 |
| Authentication | Guest VLAN, MAC-based authentication |
| BPDU filtering/protection | Yes |
| ARP inspection | Yes |
| DIN rail mounting | Yes |
| SFP module slots quantity | 2 |
| Dying Gasp | Yes |
| DC input voltage | 9.6 – 60 V |
| IGMP entries | 1000 |
| DHCP features | DHCP server, DHCP snooping |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Harmonized System (HS) code | 85176990 |
