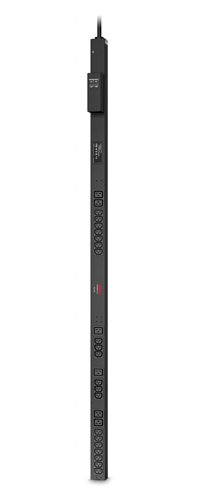

Rack PDU, basic, vertical, 220-240V, 32A, (20) C13, (6) C19
APC AP6009A. PDU types: Basic, Mounting: Vertical, Product colour: . AC outlets quantity: 26 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m, Certification: CE, EAC, IRAM, VDE, REACH. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 – 60 Hz. Dimensions (WxDxH): 56 x 43 x 1626 mm, Weight: 6.18 kg
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Weight | 7180 kg |
|---|---|
| Mounting | Vertical |
| Certification | CE, EAC, IRAM, VDE, REACH |
| Nominal input voltage | 230 V |
| Maximum current | 32 A |
| Cable length | 3.05 m |
| Product colour | Black |
| Package weight | 8 kg |
| Package dimensions (WxDxH) | 226 x 135 x 1875 mm |
| Dimensions (WxDxH) | 56 x 43 x 1626 mm |
| Weight | 6.18 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -15 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Basic |
| Power protection features | Overload |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| AC input frequency | 50 – 60 Hz |
| Sustainability certificates | RoHS |
