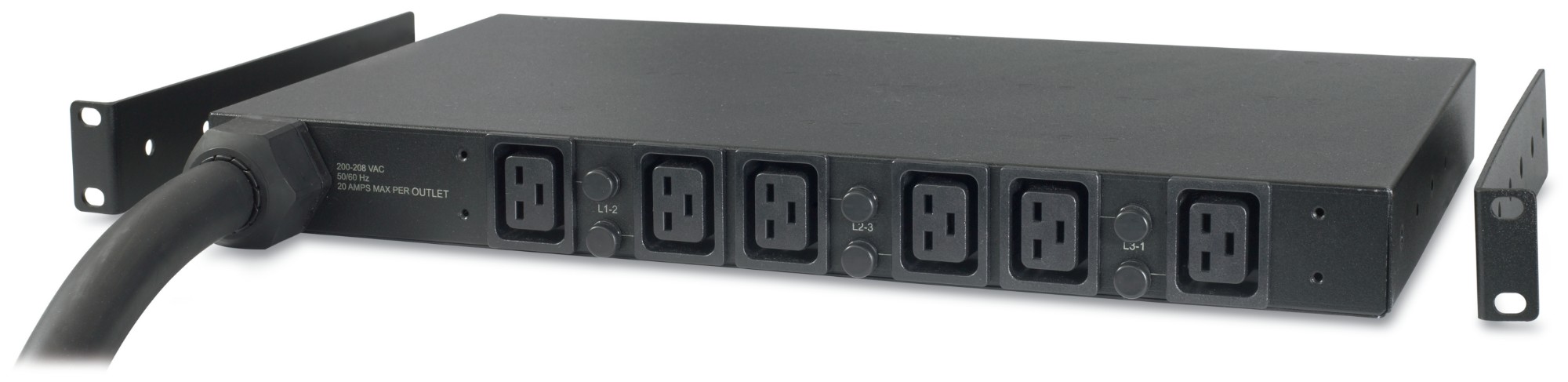

Basic Rack PDU AP7526
APC Basic Rack PDU AP7526. PDU types: Basic, Rack capacity: , Mounting: Horizontal. AC outlets quantity: 6 AC outlet(s), AC outlet types: C19 coupler, Input connection type: IEC 309 32A 3P+N+PE. Cable length: 2.44 m, Certification: CE,GOST,VDE. Nominal input voltage: 400 V, Nominal output voltage: 230 V, Load capacity: 22080 VA. Dimensions (WxDxH): 437 x 254 x 44 mm, Weight: 4.84 kg
Features:
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.
| Weight | 7155 kg |
|---|---|
| Output connections | IEC 320 C19 |
| Mounting | Horizontal |
| Input connection type | IEC 309 32A 3P+N+PE |
| Certification | CE,GOST,VDE |
| Maximum input current per phase | 32 A |
| Nominal input voltage | 400 V |
| Maximum total current draw per phase | 32 A |
| Cable length | 2.44 m |
| Load capacity | 22080 VA |
| Product colour | Black |
| Package weight | 6.98 kg |
| Package dimensions (WxDxH) | 559 x 502 x 241 mm |
| Dimensions (WxDxH) | 437 x 254 x 44 mm |
| Weight | 4.84 kg |
| Nominal output voltage | 230 V |
| Operating temperature (T-T) | -5 – 45 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -25 – 65 °C |
| Storage relative humidity (H-H) | 5 – 95% |
| PDU types | Basic |
| AC outlet types | C19 coupler |
| Maximum power | 22000 W |
| Rack capacity | 1U |
